Product ID: H-L1230T
Short Description:

Rated power: 300W
Line input: 100V or 8Ω for option
Speaker: 12" bass, 1.8" treble
ABS enclosure, Iron mesh
Outdoor IP56 waterproof

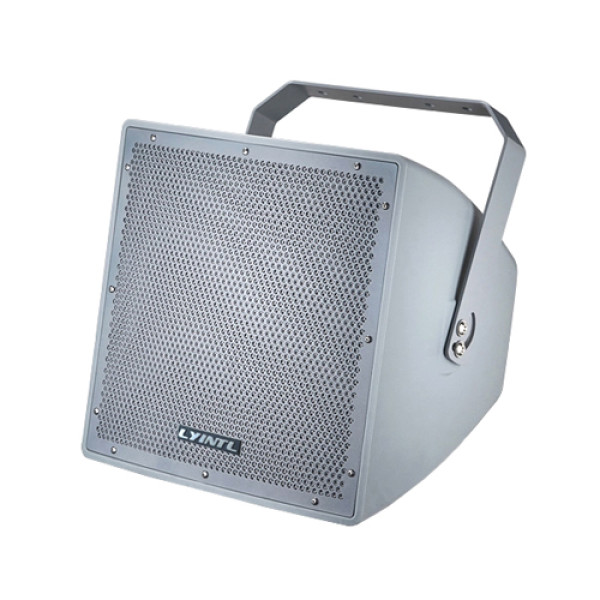

Elevate your outdoor audio experience with our 12" 300W 100V 2-Way Compact Full Range All Weather Resistant Coaxial PA Stadium Horn Speaker H-L1230T (H-L1230: 300W@8Ω).

This high-performance speaker delivers exceptional sound clarity and projection, perfect for large venues, stadiums and other indoor & outdoor environments.

The speaker uses high-power remote horn, two frequency division design, using professional high bass unit, which has efficient sound transmission, strong penetration, and high speed restoration characteristics.

Key Features:

  • Versatile Sizes:
    The speakers available in 8" (100W), 10" (200W), 12" (300W), and 15" (400W), 8 Ohms and 100V input versions to suit different needs and spaces, to match your specific audio requirements.

  • Durable Construction:
    This series enclosure is constructed of high durable ABS plastic material, which makes it waterproof, anti-corrosion and anti-hydrochloric acid, built to withstand harsh weather conditions, perfect for stadiums, arenas, and outdoor events. Also, it is heavily braced to maximize low-frequency performance.

    The steel grille is backed with open cell foam and high thread-count mesh, providing protection. The system is rated IP-56, per IEC529 when installed at minimum 5° down-tilt.

  • Superior Sound Quality:
    Build-in 2-way highly weather-resistant full-range coaxial driver, delivers clear, high-fidelity sound across all frequencies.

  • Easy Installation:
    Equipped with a mounting bracket for convenient and secure installation.

This series is engineered for robust performance and reliability, making it an ideal choice for any large-scale public address system, such as sports facilities, racetracks, stadiums, fairgrounds, rodeos, skating rinks, themed entertainment venues, cruise ships, water parks, outdoor background music/paging systems, swimming pools, and other outdoor/indoor venue types.

Upgrade your audio experience with our all-weather PA stadium horn speakers and ensure your message is heard loud and clear, no matter the environment.

 Model  H-L1230   H-L1230T
 Rated power  300W  300W
 Max power  600W  600W
 Line input  8Ω  100V
 Sensitivity (1m,1W) 104dB
 Max SPL 129dB
 Frequency response   70Hz-20KHz
 LF driver  12", 75mm voice coil, 190mm magnetic
 HF driver  1.8", 44mm voice coil, 120mm magnetic
 Directivity (HxV)  40°x60°
 Frame material  ABS plastic
 Grille material Iron
 Bracket material Iron
 Input connectors 2 x Neutrik speakon NL4
 Waterproof  IP56
 Color  Black/White/Grey
 Dimension 415 x 415 x 420 mm
 Net weight (Kg)  20 22
 Gross weight (Kg)  -  -
 Packing dimension   -
