LY-8071HD 4K Ultra HD AI All-in-One Video Conference Camera with Speaker, Microphone & Auto Tracking

LY-8071HD is a professional 4K AI all-in-one video conference terminal designed for modern meeting rooms, boardrooms, classrooms, and hybrid collaboration spaces. Integrating camera, microphone array, speaker, and advanced DSP audio processing into a single compact unit, LY-8071HD delivers crystal-clear video and immersive audio with intelligent AI tracking and framing.

With powerful AI facial detection, 8-meter voice pickup, and 4 advanced audio processing technologies, LY-8071HD significantly improves meeting efficiency and communication experience, making it an ideal solution for enterprise video conferencing, government meetings, education, and remote collaboration.

Key Features

4K Ultra HD Video with AI Intelligence

• Built-in 4K camera (8MP CMOS sensor) delivers sharp, natural images

• 120° wide-angle lens (90° optional) covers more participants

• Supports 4K@30fps, backward compatible with 2K / 1080P / 720P / 480P / 360P

• AI facial detection, auto tracking & intelligent framing ensure the speaker is always in focus

Professional Audio Pickup & Processing

• Integrated microphone array with 8-meter voice pickup range

• Dual built-in speakers, 2 × 15W output, clear and powerful sound

• Advanced DSP audio processing for professional-grade voice quality

4 Advanced Audio Processing Technologies

• Echo Cancellation (AEC) – eliminates echo in full-duplex communication

• Intelligent Noise Suppression (ANC) – reduces background noise

• Automatic Gain Control (AGC) – balances voice levels automatically

• Reverberation Optimization – improves clarity in large rooms

Flexible System Integration

• HDMI video output for external displays

• Supports connection to local audio processors, mixers, and microphone systems

• Connectable with one ceiling microphone, ideal for medium to large meeting rooms

All-in-One Design

• Camera + microphone + speaker in one compact unit

• Simple installation, reduced wiring

• Clean, professional appearance for modern meeting environments

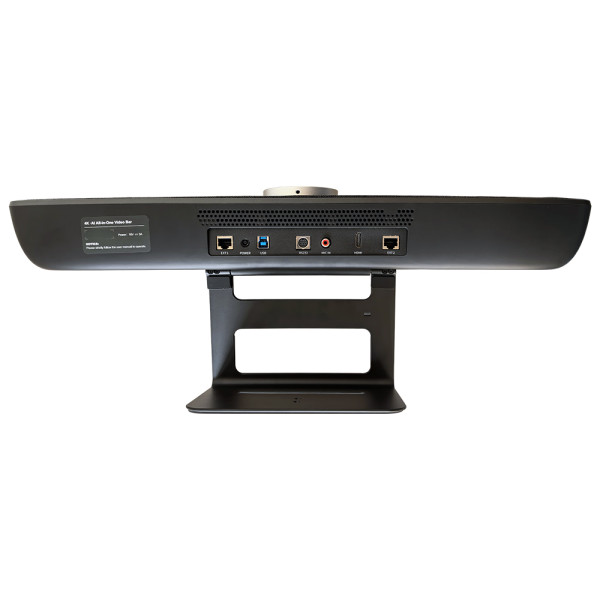

Interfaces & Connectivity

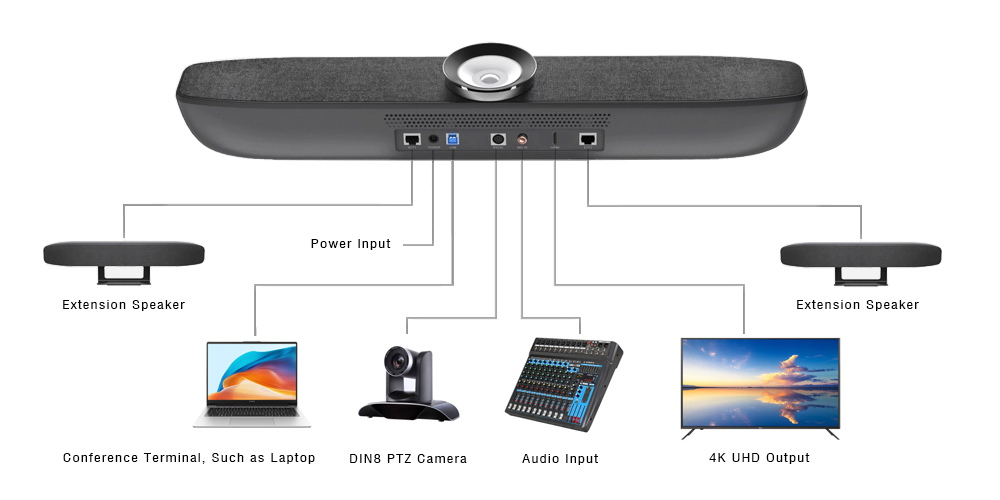

The interface diagram above shows the HDMI output, audio input/output, microphone expansion, and system connectivity options of the LY-8071HD, enabling seamless integration with external displays and professional audio systems.

Typical Applications

• Corporate meeting rooms

• Boardrooms & executive offices

• Government conference halls

• Distance education & smart classrooms

• Remote collaboration & hybrid meetings

Specifications are subject to change without prior notice.
