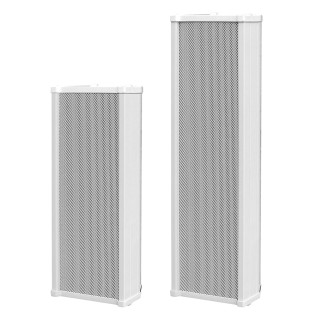

M-9463/M-9466 4G Wireless Network PA System Outdoor Waterproof Column Speaker
Product ID:
M-9463/M-9466
Short Description:
Rated power: 30W / 60W
Built-in 4G wireless module
Supports TCP/IP, UDP & multicast
Ideal for rural, emergency & outdoor PA systems
The M-9463 (30W) and M-9466 (60W) are 4G-enabled network outdoor waterproof column speakers designed for wireless IP public address systems.
Both models work with the M-9200 IP PA server (or any PC installed with compatible network PA control software) to form a 4G-based wireless public address and broadcasting system, ideal for rural broadcasting, village-to-village PA projects, emergency broadcasting, and outdoor public information systems.
With an integrated digital power amplifier, 4G communication module, and loudspeaker unit, these speakers eliminate complex cabling and allow fast deployment over LAN, WAN, or mobile networks.
Key Features & Benefits
✔ Integrated 4G Wireless IP PA Solution
-
Built-in 4G module with SIM card support
-
Supports TCP/IP, UDP, IGMP (multicast) protocols
-
Transmits 16-bit CD-quality digital audio over wireless networks
-
Ideal for wireless public address systems without audio cabling
✔ All-in-One Active Network Column Speaker
-
Integrated digital power amplifier + speaker
-
Available in 30W (M-9463) and 60W (M-9466) power options
-
High efficiency Class-D digital amplification
-
Clear, stable sound for outdoor broadcasting
✔ Outdoor Waterproof & Durable Design
-
White aluminum alloy enclosure
-
Excellent sealing and weather resistance
-
IP54 protection rating
-
Designed for long-term outdoor installation
✔ Centralized Network Control & Management
-
Works with M-9200 IP PA server or PC-based control software
-
Centralized authorization and user management
-
100-level customizable audio priority and mute control
-
Suitable for large-scale distributed PA systems
✔ Flexible Network Architecture
-
Supports LAN & WAN
-
Compatible with routers, switches, gateways, bridges, modems
-
Works over Internet, 2G, 3G, 4G
-
Supports unicast and multicast transmission
✔ Easy Expansion & Installation
-
Fully digital system, easy to scale
-
No distance limitation
-
No additional control room equipment required
-
“Shared network, no extra wiring” design philosophy
✔ Solar Power Ready (Optional)
-
Customizable DC 24V power supply
-
Suitable for solar battery systems
-
Ideal for remote or off-grid outdoor applications
Typical Applications
-
Village-to-village broadcasting systems
-
Rural public address & information broadcasting
-
Emergency alert and evacuation systems
-
Outdoor parks, campuses, scenic areas
-
Smart city & smart countryside projects
-
Disaster prevention & public safety broadcasting
System Compatibility
-
M-9200 IP PA Server
-
PC with network PA management software
-
Works as part of a 4G wireless IP public address system
| Model | M-9463 (30W) | M-9466 (60W) |
| Rated Power | 30W | 60W |
| Max Power | 75W | 120W |
| Network Type | Wireless (4G) | |
| Supported Protocols | TCP/IP, UDP | |
| Audio Format | MP3 | |
| Sampling Rate | 8kHz – 48kHz | |
| Transmission Rate | 4G | |
| Audio Mode | 16-bit CD Quality | |
| Total Harmonic Distortion | ≤1% | |
| Frequency Response | 100Hz – 15kHz (+1dB / -3dB) | |
| Signal-to-Noise Ratio | ≥65dB | |
| Protection Rating | IP54 | |
| Operating Temperature | -20℃ to +60℃ | |
| Operating Humidity | 20%–80% RH, non-condensing | |
| Power Supply | AC 220V / 50Hz (DC 24V optional) | |
| Speaker Units | 4.5" ×1 + 3" ×1 | 4.5" ×3 + 3" ×1 |
| Dimensions (H×W×D) | 373 × 152 × 100 mm | 610 × 152 × 100 mm |
Specifications are subject to change without prior notice.
