Product ID: SUB-660W/SUB-860W
Short Description:

Rated power: 60W
Power taps: 15W/30W/60W/8Ω/parallel 4Ω
Line input: 70V/100V/8Ω
6" or 8’’ active driver

Enhance your audio experience with our fashion designed wall mount subwoofer speakers, available in 6" and 8" versions.

Designed for both home and commercial environments, these speakers deliver powerful sound and versatility for background music systems.

Key Features:

  • Dual Channel Design:
    Enjoy a rich audio experience with our innovative dual channel and dual voice coil design, enhancing sound clarity across frequencies.

  • Power Versatility:
    Each version offers selectable power taps of 15W, 30W, and 60W, with a rated power of 60W to suit various audio needs.

  • Flexible Compatibility:
    Support for 70V, 100V, 8 Ohm, and parallel 4Ω inputs ensures compatibility with a wide range of amplifiers and audio setups.

  • Dual Sizes:

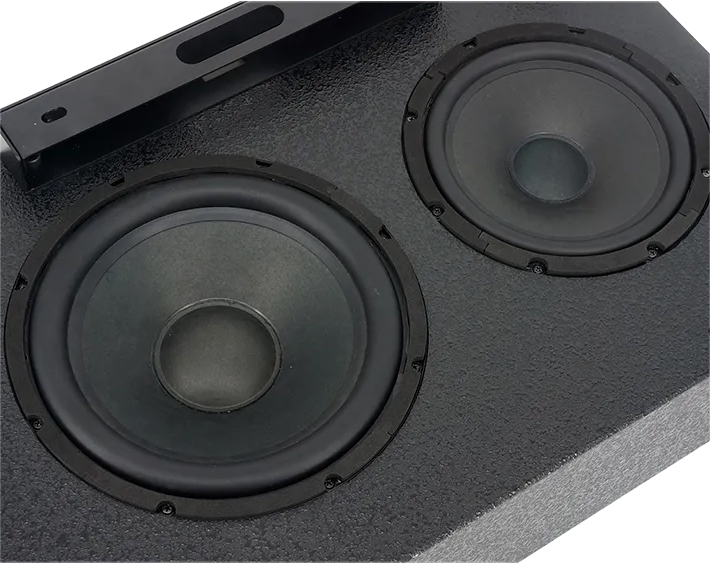

    Choose between the 6" version, featuring a built-in 6" active driver and an 8" passive driver, or the 8" version, with an 8" active driver and a 10" passive driver.

  • High-Quality Drivers:
    Both models incorporate paper cone drivers with rubber surrounds for superior sound quality and durability.

  • Easy Installation:
    These speakers can be easily mounted on walls or other flat surfaces, making them ideal for any space.

  • Durable Construction: Crafted from medium-density board and supported by robust A3 steel brackets, these speakers are built to last.

Whether you're setting up a cozy home theater or a vibrant commercial music system, our wall mount subwoofer speakers are the perfect choice for delivering exceptional sound performance.

 Model  SUB-660W  SUB-860W
 Woofer driver  1x6" active, 1x8" passive
 (paper cone woofer, rubber surround)
1x8" active, 1x10" passive
 (paper cone woofer, rubber surround)
 Frequency range  35Hz-200Hz  35Hz-200Hz
 Rated power   60W  60W
 Sensitivity  87dB±3 (1M/1W)  89dB±3 (1M/1W)
 Power taps (100V)  15W / 30W / 60W  15W / 30W / 60W
 Power taps (70V)  7.5W / 15W / 30W  7.5W / 15W / 30W
 Line input  70V/100V/8Ω
 Impedance  667Ω / 333Ω / 167Ω / 8Ω / parallel 4Ω
 Dimensions (L*W*D)  540x350x130mm  590x375x160mm
 Installation holes  2*∅8mm, 280mm interval
 Mounting method  Stent installation
 Wire connection type  European terminal
 Material  Body: medium density board
 Bracket: A3 cold steel

 Net weight  7.6KG  9.8Kg
 Gross weight  -
 Packing dimension (LxWxD)   -
