Product ID: CS-2430/CS-2860
Short Description:

Rated power
CS-2430: 30W
CS-2860: 60W
Speaker driver:
CS-2430: 2"*4pcs
CS-2860: 2"*8pcs
Line input: 100V / 4Ω (8Ω)
Aluminum shell, Iron mesh

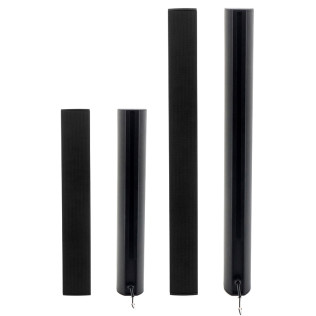

The CS-2430 and CS-2860 are high-performance outdoor column speakers designed for commercial public address systems. Featuring a sleek aluminum alloy shell and durable iron mesh, these fixed-pressure and fixed-resistance pillar loudspeakers are ideal for both speech and music applications in large venues.

With a focus on clarity and fidelity, the CS-2430 and CS-2860 deliver exceptional medium-frequency and high-fidelity audio reproduction, making them perfect for high-end conference halls, large wine parties, and outdoor events.

The simple yet elegant design ensures easy installation and operation, with a convenient wall-mount bracket and straightforward power settings.

Key Features:

  • Outstanding Sound Quality:
    Provides clear and precise speech reproduction with rich, full-frequency audio.
  • Durable Construction:
    Aluminum alloy shell and iron mesh for enhanced weather resistance and longevity.

  • Versatile Power Options:
    • CS-2430: 7.5W / 15W / 30W @ 100V, constant impedance: 60W @ 4Ω
    • CS-2860: 15W / 30W / 60W @ 100V, constant impedance: 120W @ 8Ω
  • Built-in Drivers:
    • CS-2430: 2" x 4 drivers
    • CS-2860: 2" x 8 drivers
  • Easy Installation:
    Includes a wall-mount bracket for simple setup.

  • Compliance:
    Meets CE and IP55 standards for water and dust protection.
 Model  CS-2430  CS-2860
 Rated power 30W 60W
 Power taps (100V)  7.5W / 15W / 30W   15W / 30W / 60W
 Nominal impedance 1333Ω / 666Ω / 333Ω   666Ω / 333Ω / 166Ω
 Line input voltage 100V
 Constant impedance  4Ω (60W) 8Ω (120W)
 Frequency response 150Hz-20KHz ±10% 150Hz-20KHz ±10%
 SPL 89±3dB (1M/1W) 92±3dB (1M/1W)
 Loudspeaker unit 2" x 4pcs 2" x 8pcs
 Horizontal opening angel (1kHz/-6dB)  120°
 Vertical opening angel (1kHz/-6dB) 50°
 Shell material Aluminum
 Mesh material Iron
 Connection type 6P terminal
 Color Black / White
 Speaker mounting method Wall bracket installation
 Working temperature -25°C~55°C
 Storage temperature -40°C~70°C
 Product dimension (mm)   425*85.5*68.4 606*85.5*68.4
 Net weight (kg)  1.6 2.72
 Packing dimension (cm)   - -
 Packing weight (Kg)  - -
