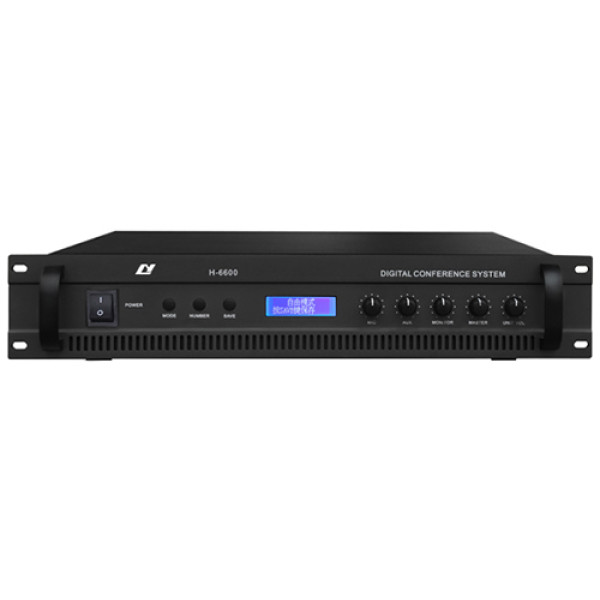

H-6600 Digital Discussion Conference System
◆ Designed accordance to ISO and IEC914 standards
◆ Main unit can support 60 units delegate and chairman microphone, it could be extend to support 250 unit microphone with extension power unit
◆ Equipped with four groups of 8P-DIN interface for system connecting
◆ With port for telephone interface unit, telephone meeting is available with telephone coincidence
◆ Build-in monitor loudspeaker
◆ System support discuss mode: Free mode, FIFO mode (1-9 microphone unit), Limit mode (1-9 microphone unit)
◆ System working mode can display on LCD
◆ Support video camera auto-track with video processor H-8008
◆ Support voting with voting processor H-8000
◆ Connection:
1 pc 13m main cable with 8 PIN plug
8 PIN socket for system connection
| Item | Parameter |
| Power Supply | AC110V/240V 50Hz/60Hz |
| Consumption Rating | 350W |
| T.H.D. | <0.05% |
| S/N | >75dB |
| Frequency Response | 100Hz-18KHz |
| Color | Black |
| Net Weight (Kg) | 8.0 |
| Audio Input | RCAx1, Φ6.35x1 |
| Audio Output | RCAx1, XLRx1 |
| Output voltage | DC24V |
| Output Impedance | 47KΩ |
| Data Communication | RJ45x1 |
| System Connection | 8-PIN DINx4 |
| Dimension (mm) | 480x360x85 |
| Installation | 2U rack 19 inch frame |
