Products

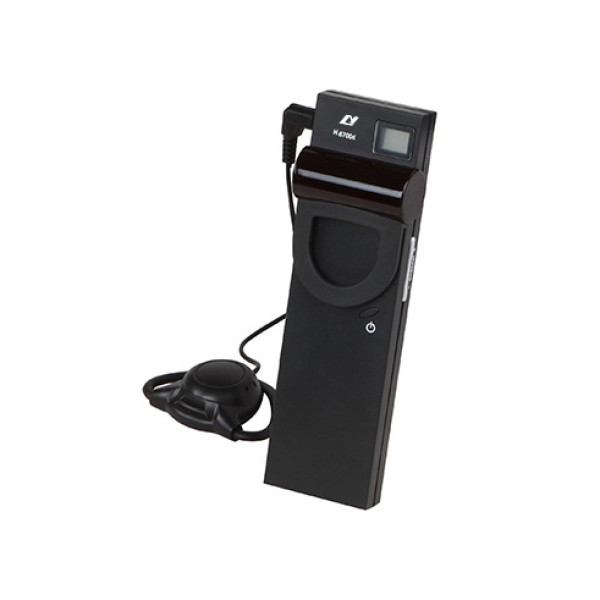

H-6700D Digital IR Receiver
Product ID:
H-6700D
Short Description:
Accommodates up to 32 different languages
With channel selector and headphone connector
LCD display battery and reception status
◆ Packet size wireless handheld unit
◆ Accommodates up to 32 different languages
◆ Channel selector and headphone connector
◆ Power on/off switch and volume level control
◆ Powered by (2xAA) rechargeable batteries
◆ Aluminum carrying cases provided for recivers
◆ 2-digit LCD display with battery and reception status indication
◆ Compatible with Bosch system
| Item | Parameter |
| Receiving sensitivity | -101dBM |
| Angle of half sensitivity | ± 50° |
| Headphone output level at 2.4V | 450 mVrms (Speech at maximum volume, 32 ohm headphone) |
| Headphone output frequency range | 20Hz to 10KHz |
| Headphone output impedance | 32Ω |
| Max. signal-to-noise ratio | 78dB(A) |
| Supply voltage | 1.8 to 3.6 V, nominal 2.4 V |
| Power consumption at 2.4V (battery voltage) | 60mA (speech at maximum volume, 32 ohm headphone) |
| Power consumption (standby) | 60mA |
| Dimension (mm) | 157×49×25 |
| Operating temperature range | 0-40° |
| N.W (Kg) | 150g without battery |
