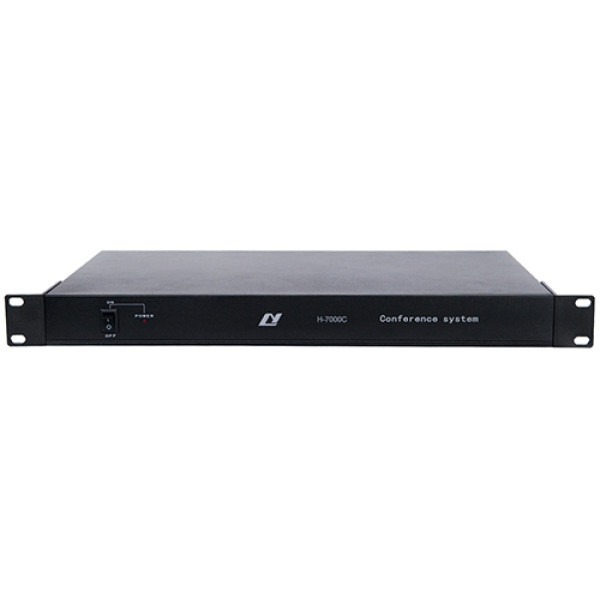

H-7000C Discussion Conference System Main Unit
This 250 discussion conference system uses the latest technology to implement discussion and is suitable for a variety of mini/medium type meeting rooms.
◆ Designed accordance to ISO and IEC914 standards
◆ Main unit can support 60 units delegate and chairman microphone, it could be extend to support 250 units microphone with extension power unit
◆ Equipped with three groups of 8 P-DIN interface for system connecting
Item | Parameter |
Power Supply | AC110V~240V / 50Hz/60Hz |
Power Consumption | 50W |
Color | Black |
Net Weight (Kg) | 3.3 |
Audio Output | RCAx2, XLRx1, Φ6.3x1 |
System Connection | 8-PIN DINx3 |
Dimension (mm) | 480x240x45 |
Installation | 19 inch frame |
