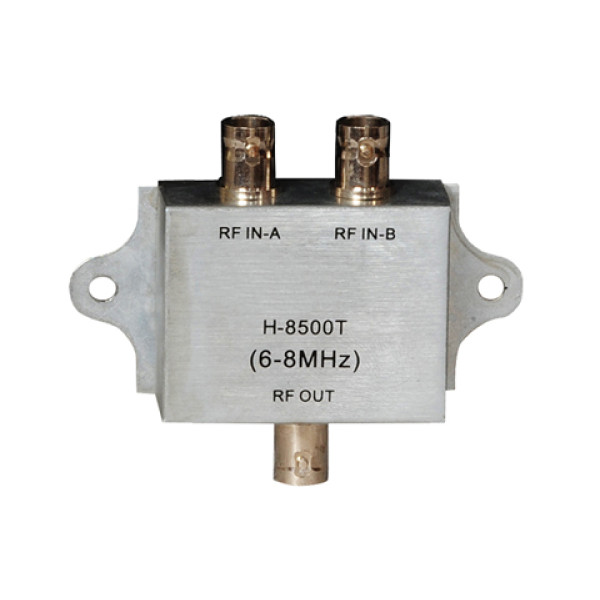

H-8500T Infrared Wireless Conference System Distributor
This distributor unit uses impedance balancing branch connector (2 input, 1 output).
◆ Adopt impedance balance branch connector( 2 input, 1 output)
◆ Low insertion loss computation
◆ Perfect plating surface treatment with excellent shielded function
Item | Parameter |
Carrier Frequency Band | 6MHz-8MHz |
Insertion Loss Computation | <1dbM |
Input/output Impedance | 50Ω |
Input Terminal | 2 |
Output Terminal | 1 |
Terminal Type | BNC |
Dimension (LxWxH) (mm) | 80x65x20 |
Net Weight (Kg) | 0.09 |
