Product ID: H-8510R
Short Description:

Receiving range around 150°
Operating distance > 10M

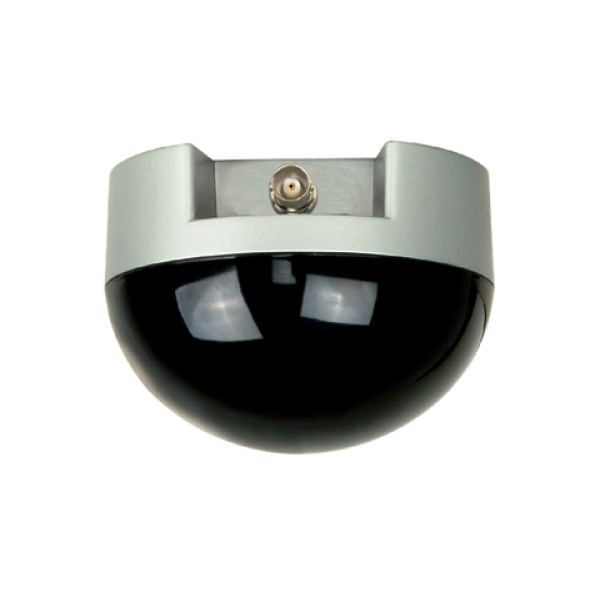

This receiver unit of the IR wireless conference system uses mounting hook installation and is easy to install.



◆ Adopt mounting hook installation, easy to install

◆ Wide-angle, receiving range is approximately 150 degrees

◆ Signal gain more than 35dBM

◆ Adopt low consumption electric circuit

◆ Wall/ceiling installation option

 Item  Parameter
 Carrier Frequency Band   6MHz-8MHz
 Power Supply  DC 12V from main unit
 Rated Current  25mA
 Receiving Sensitivity  -85dBM
 Gain  40dBM
 Output Impedance  50Ω
 Terminal Type  BNC
 Dimension (mm)  Φ98x74
 Net Weight (Kg)  0.44 (with bracket)
