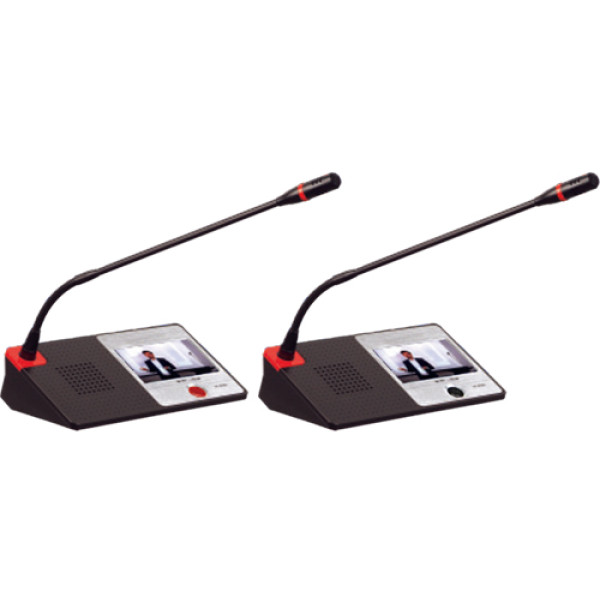

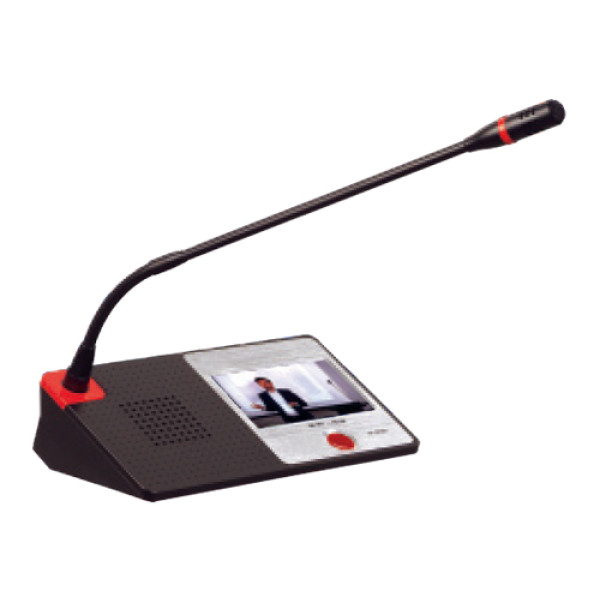

H-9100Ac/H-9100Ad Digital Video Conference System Microphone
Product ID:
H-9100Ac/H-9100Ad
Short Description:
Support discuss, video auto-track & voting
Build-in speaker & LCD
IC card/key press sign in
◆ Frequency responce: 40Hz~16kHz
◆ Sensitivity: -44dB(±2dB)
◆ S/N ratio: 85dB
◆ Dimension(mm): 230x132x64
◆ Length of gooseneck: 410mm (17")
◆ Net weight: 1KG
◆ Discuss, video & voting
◆ Built-in speaker
◆ 4.3" 24 bit TFT touch LCD (480*272)
◆ Sound pick-up distance: 20~50cm
◆ IC card/key press sign in option
◆ Chairman with priority button
| Item | Parameter |
| Power Supply | DC24V by 8-PIN cable |
| LCD Type | 4.3’’ 24 bit TFT |
| Max resolution LCD | 480x272 |
| Consumption Rating | <2W |
| T.H.D. | <0.05% |
| S/N | >85dB |
| Frequency Response | 40Hz-16KHz |
| Sensitivity | -44dB±2dB |
| Line, Rec | 3.5 mm stereo jack |
| Headset | 3.5 mm stereo jack |
| System Connection | 8-PIN DIN |
| Base dimension (mm) | 230x132x64 |
| Length of gooseneck (mm) | 410 (17") |
| Talking distance (mm) | 20-50 |
| Net Weight (Kg) | 1.3 |
