Products

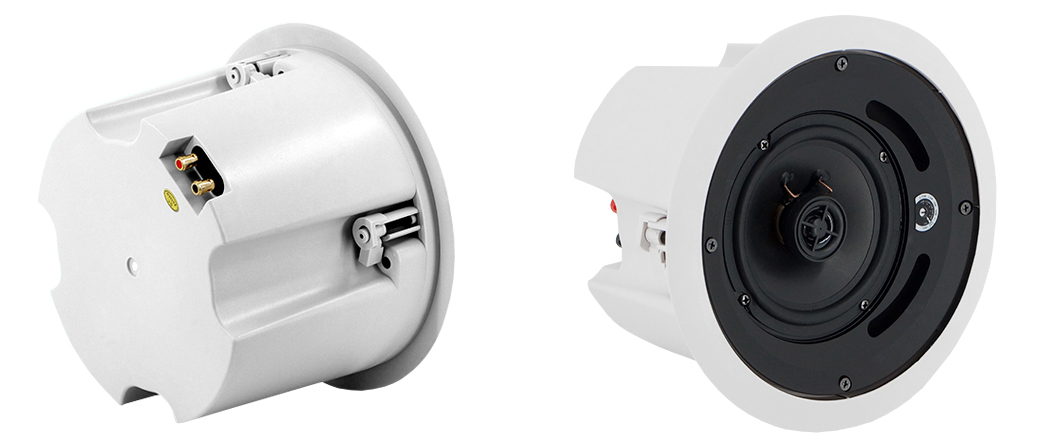

L-406TKS/L-506TKS/L-606TKS 4"/5"/6" Ceiling Speaker with ABS Cover and Power Taps
Product ID:
L-406TKS/L-506TKS/L-606TKS
Short Description:
Rated power: 20W/30W/40W
Line input: 70V/100V/8Ω
Speaker driver: 4" or 5" or 6" PP woofer + 1" Mylar tweeter
Elevate your public address and background music systems with these premium ceiling-mounted speakers.
Featuring a durable iron front grille and a high-strength ABS rear cover, these speakers are designed for lasting performance.
Available with 70V/100V and 8Ω inputs, they offer flexibility with a power taps switch.
Choose from 4", 5", or 6" PP cone woofers, paired with a 1" Mylar coaxial tweeter for outstanding audio quality.
Perfect for indoor use, these CE-certified speakers deliver superior sound and are ideal for any indoor environment.
| Model | L-406TKS | L-506TKS | L-606TKS |
| Rated power | 20W | 30W | 40W |
| Power taps | 2.5/5/10/20W | 3.8/7.5/15/30W | 5/10/20/40W |
| Line input | 70V/100V/8Ω | ||
| Sensitivity (1m,1W) | 87±3dB | 88±3dB | 90±3dB |
| Frequency response | 90-20KHz | 80-20KHz | 70-20KHz |
| Woofer speaker driver | 4" PP | 5" PP | 6" PP |
| Tweeter speaker driver | 1" Mylar | ||
| Product dimension (mm) | Φ200x150 | Φ230x150 | Φ270x180 |
| Hole for mounting (mm) | Φ180 | Φ210 | Φ250 |
| Frame material | ABS | ||
| Grille material | Powder coated Iron mesh | ||
| Color | White (RAL9016) | ||
| Product net weight (Kg) | 1.8 | 2 | 2.7 |
| Gross weight | 17Kg/8pcs | 18Kg/8pcs | 13.4Kg/4pcs |
| Packing dimension (cm) | 54x50x42 | 59x55x43 | 64x34x49 |
