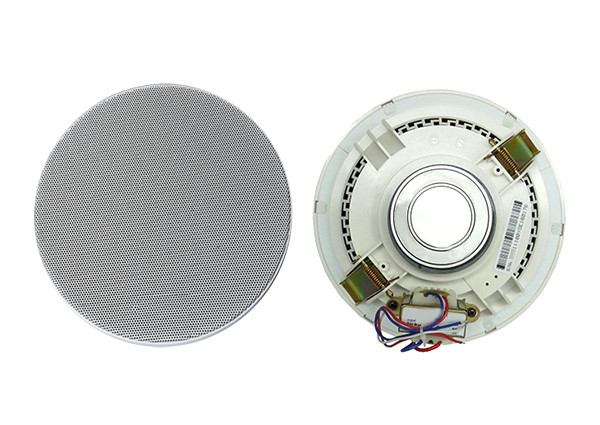

L-5211 6½" 10W ABS Frameless 2-Way Coaxial Ceiling Speaker
Product ID:
L-5211
Short Description:
Rated power: 10W
Line input: 70V/100V
Speaker driver: 6½" woofer + ¾" tweeter
Untra-slim edge designed coaxial two-frequency ceiling speaker, with wide angle and high output power.
● RAL white coating
● With 6½ inch woofer speaker driver unit and ¾ inch tweeter unit
● Complied with IEC268-5 power handling capability (PHC) standard, can works continuously for more than 100 hours at rated power
● Powerful clip design, durable and relible, easy to install
| Model | L-5211 |
| Rated power | 10W |
| Power taps (70V) | 2.5/5W |
| Power taps (100V) | 5/10W |
| Line input | 70V/100V |
| Sensitivity (1M,1W) | 86dB±2dB |
| Max SPL (1M) | 90dB±2dB |
| Frequency response | 90-18KHz |

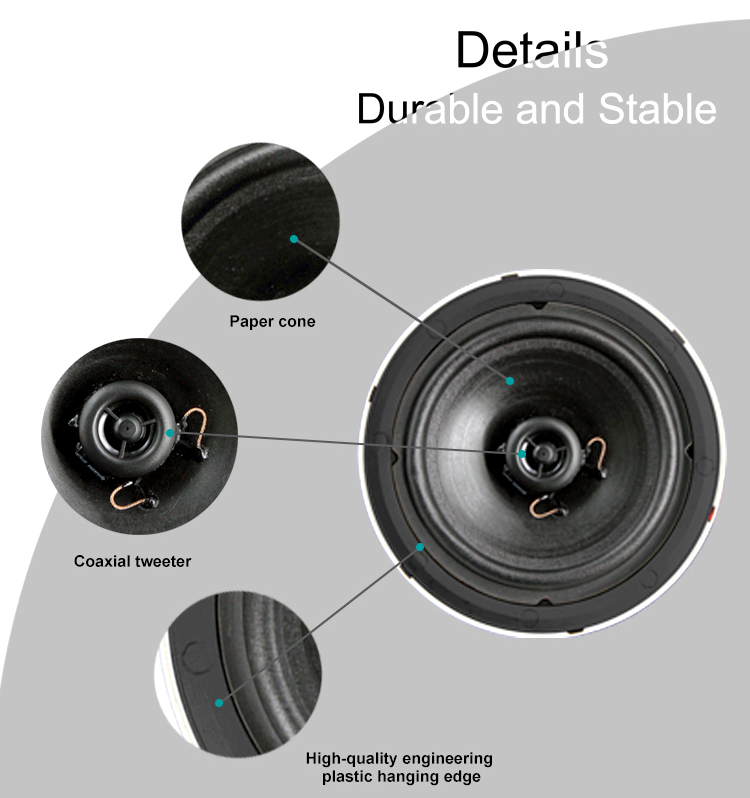

| Woofer speaker driver | 6½" PP paper cone, plastic edge |
| Tweeter driver | ¾" coaxial |
| Product dimension (mm) | Φ190x80 |
| Hole for mounting (mm) | Φ170 |
| Frame material | ABS |
| Grille material | Steel |
| Color | White |
| Product net weight (Kg) | 1.0 |
| Gross weight (Kg) | - |
| Packing dimension (cm) | - |
