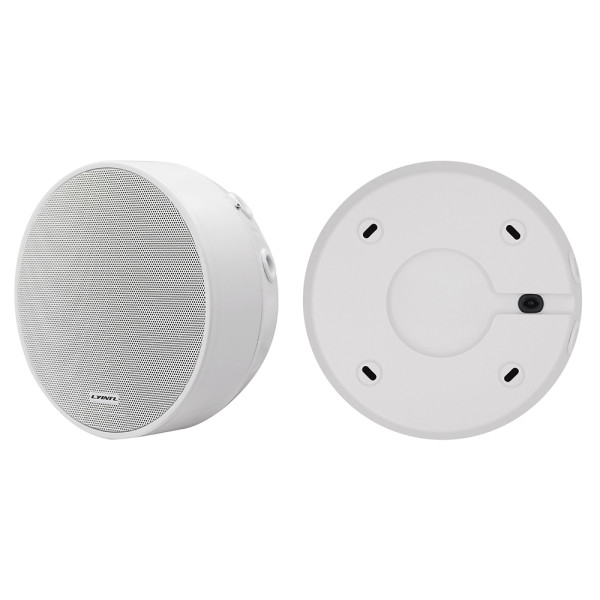

L-5311 On Surface Mount Ceiling Speaker
Product ID:
L-5311
Short Description:
Rated power: 6W
Line input: 70V/100V
Woofer driver: 6½" paper cone
On ceiling or wall mount ABS speaker, built-in 6.5" paper cone wooofer driver unit,70V / 100V input and 3/6W power taps.
Built-in 6.5” speaker driver is designed of wide frequency response 110-18,000Hz, multiple input terminals; It is made of high quality engineering plastic, long-term durability, never out of shape and fading; No roof cutout, direct mounting on ceiling by 4 screws .
- Installation
| Model | L-5311 |
| Rated power | 6W |
| Power taps (70V) | 1.5/3W |
| power taps (100V) | 3/6W |
| Line input | 70V/100V |
| Sensitivity (1m,1W) | 92±2dB |
| Frequency response | 140-16KHz |
| Woofer driver size | 6.5" paper (cloth edge) |
| Tweeter driver size | - |
| Product dimension (mm) | Φ203.5x94 |
| Hole for mounting (mm) | - |
| Frame material | ABS |
| Back cover material | - |
| Color | White (RAL9016) |
| Grille material | Aluminum |
| Product net weight (Kg) | 1Kg |
| Gross weight (Kg) | 13.2Kg (12pcs) |
| Packing dimension (cm) | 43.5x33.5x42.5 |
