Products

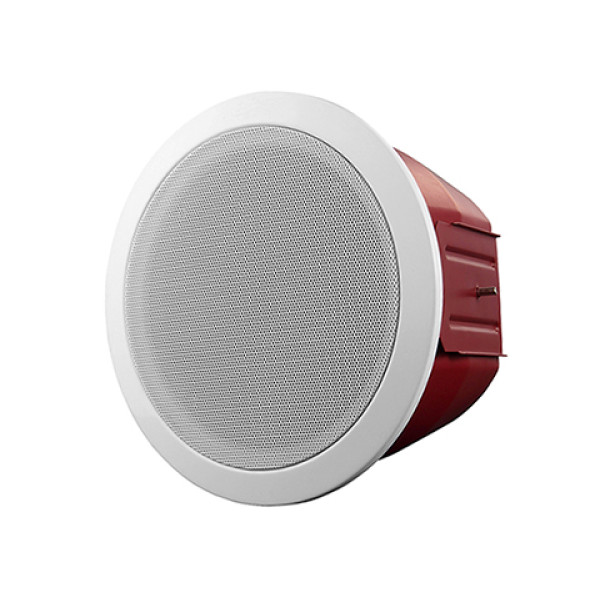

L-VCM6A/EN Honeywell 6W 6.5" Fireproof Metal Ceiling Speaker EN54-24
Product ID:
L-VCM6A/EN (LSC-606)
Short Description:
Rated power: 6W
Speaker unit: 6.5"
Comply with EN54-24 standard
◆ Comply with EN54-24 requirements
◆ With fire dome to protect wire connection
◆ Fireproof plastic wire joint and ceramic terminal
◆ High-class steel and form by stamping
◆ Aluminum grille, stainless and durable
◆ Clip type flush mount design for easy installation
◆ Equipped with steel hanging line, double ensure
◆ With fire dome to protect wire connection
◆ Fireproof plastic wire joint and ceramic terminal
◆ High-class steel and form by stamping
◆ Aluminum grille, stainless and durable
◆ Clip type flush mount design for easy installation
◆ Equipped with steel hanging line, double ensure
| Model | L-VCM6A/EN (LSC-606) | |
| Rated/Max power | 6W/9W | |
| Power taps | 100V | 6/3/1.5/0.75W |
| 70V | 3/1.5/0.75/0.375W | |
| Line input voltage | 100V/70V | |
| Rated impedance | 1.7kΩ/3.3kΩ/6.7kΩ/13kΩ | |
| Sensitivity at rated power /1W | 100 Hz-10k Hz, 1m | 99dB/91d |
| 100 Hz-10k Hz, 4m | 87dB/79dB | |
| Frequency response (-10dB) | 170-20KHz | |
| Dispersion angle (1kHz/-6dB) | 170° | |
| Connection | Ceramic Terminal | |
| Dimension (mm) | Φ222x129 | |
| Hole for mounting (mm) | Φ196 | |
| Speaker driver unit | full range 6.5" | |
| Material | Iron | |
| Grill color | White (RAL 9003) | |
| Dome color | Red (RAL 3000) | |
| Weight (Kg) | 1.57 | |
