Power handling (RMS): 30W
Dual 5.25" woofers, 2" midrange, and 1" silk dome tweeter
With sound pressure level adjustment switch
Borderless magnetic grille

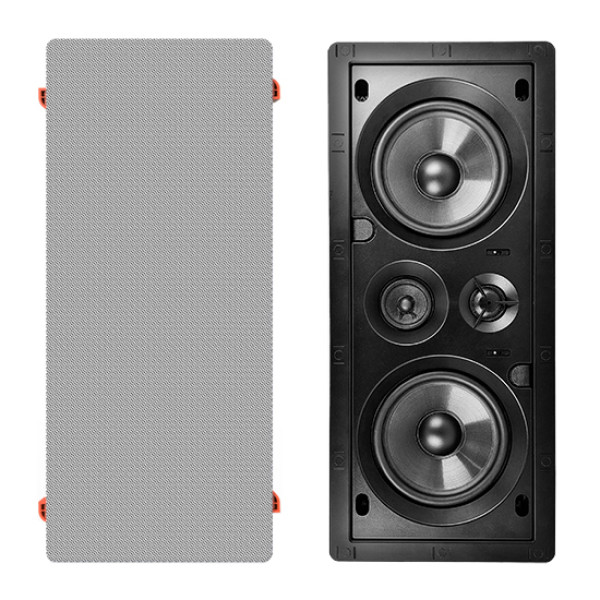

The LYINTL LCR-502 is a high-quality, in-wall LCR (Left-Center-Right) speaker designed for professional installations in both commercial and residential multimedia environments. Equipped with dual 5.25" graphite cone woofers with rubber surround, a 2" paper cone mid-frequency driver with foam surround, and a 1" silk dome high-frequency unit, this speaker delivers precise, full-range audio with excellent clarity and depth. A sound pressure level adjustment switch allows fine-tuning for optimal performance in different acoustic spaces, while its fashionable, flush-mount design ensures seamless integration into any interior.
Balanced Multi-Frequency Performance
Three-way design with dual 5.25" woofers, 2" midrange, and 1" silk dome tweeter, ensuring detailed reproduction across the full frequency spectrum.
Premium Build Quality
Durable materials including graphite cone woofers and foam surround midrange provide reliable, long-lasting performance.
Versatile Integration
Adaptable for LCR applications in conference rooms, boardrooms, auditoriums, home theaters, and high-end residential installations.
Customizable Output
Includes a sound pressure level adjustment switch for tailoring performance to different room environments.
Sleek, Space-Saving Design
Fashionable, flush-mount in-wall construction blends seamlessly with interiors while delivering powerful, immersive sound.
Exceptional Clarity & Depth – Detailed high, mid, and low frequencies for a balanced audio experience.
Robust Build Quality – Premium driver materials ensure durability and consistent performance.
Professional-Grade Versatility – Suitable for both standalone and multi-channel setups in B2B AV, hospitality, and residential projects.
Elegant Aesthetic – Stylish, discreet design complements modern interiors.
Adjustable Sound Output – Fine-tune SPL to match different installation environments.
Model Number | LCR-502 |
Power Handling (RMS) | 60W Program / 30W (IEEE 219 Standard) |
Tweeter (HF Unit) | 1” (25 mm) Silk Soft Dome |
Midrange (MF Unit) | 2” (54 mm) Paper Cone with Foam Surround |
Woofer (LF Unit) | Dual 5” Graphite Cone with Rubber Surround |
Impedance | 8Ω |
Sensitivity (Output SPL) | 87 dB |
Frequency Range (±3dB) | 70 Hz – 20 kHz |
Termination | Standard Pressed Connector |
Transformer Taps | N/A |
Housing Material | ABS |
Dimensions (H × W × D) | 100 × 442 × 190 mm |
Cut-Out Size | 16.33” × 6.49” (415 × 165 mm) |
Installation | In-Wall / In-Ceiling, with Cut-Out Template & Grille |
