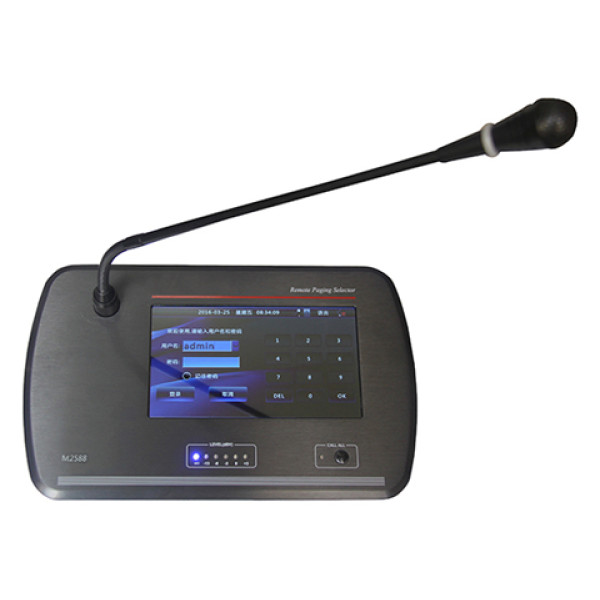

M-2588 250 Zone Remote Paging Station

Product ID: M-2588

Short Description:

250 zones remote paging
1 AUX input and 1 AUX output
Host partition paging

Manual Book Download:
- M-2588.pdf

M-2588 series of remote paging selector adopts signal all-digital transmission design, high stability and low failure rate.

◆ 7 inch true color LCD touch screen, high-grade aluminum alloy panel design

◆ Desktop design

◆ High-fidelity and hand-held dynamic microphone design

◆ Possess multi-level indication, sound pressure is more intuitive

◆ Convenience quick paging in emergencies with manual shortcut keys

◆ 1 line audio input (connect the player devices such as a DVD player, tuner, wireless microphone, etc.)

◆ 1 line audio output (connect to amplifier)

◆ Built-in bell sound

◆ Host partition paging function

Item	Parameter
Input sensitivity	Mic: 10mV(±1mV), unbalance Line: 300mV(±50mV), unbalance
Audio signal output	Line output: 1V（±0.1V）
Audio signal output	Chime output: 0.8V-1V
Chime output type	CHIME1: note1-3-5-i
	CHIME2: notei-5-3-1
	CHIME3: note i-5-i-5
Frequency response	Mic: 150Hz-10kHz(±3dB) Line: 20Hz-20kHz(±3dB)
Distortion	MIC: ≤1.5%
Distortion	Line: ≤0.1%
Signal to noise ratio	Mic input ≧60dB Line input≧70dB
Protection	AC fuseF1L
Power	AC 220-240V/50-60Hz/5W
Device size (mm)	(L×W×H) 270×180×120
Gross weight (Kg)	3.5
Net weight (Kg)	2.2
