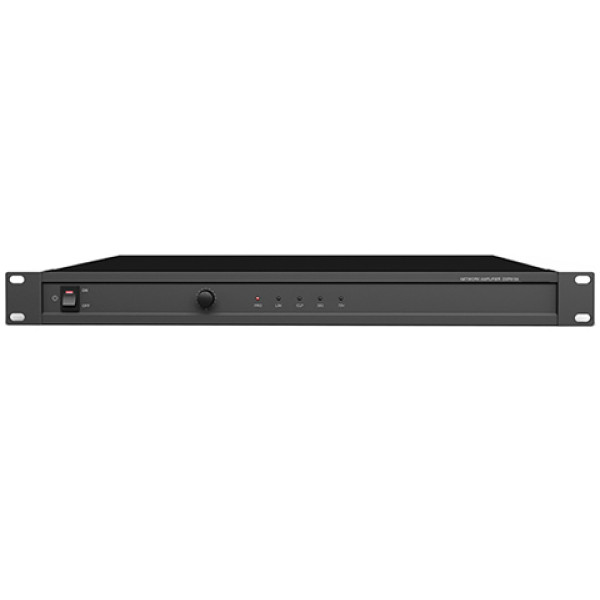

M-9151/M-9152/M-9153/M-9154 IP Network Amplifier
Product ID:
M-9151/M-9152/M-9153/M-9154
Short Description:
RMS: 60W/120W/250W/500W
Class-D digital amplifier
Based on TCP/IP protocol
This series IP network digital amplifier can work off-line independently from the network.
◆ Rated power (RMS): 60W/120W/250W/500W, 100V output
◆ Class-D digital amplifier based on TCP/IP protocol
◆ High-level protection circuit, output short circuit protection, overload protection, overheating protection and other protection and warning functions
◆ Built-in high efficiency digital amplifier, up to 90% efficiency
◆ Can be separated from the network and host, independent working operation
◆ Built-in mass storage, built-in program source,
◆ With timer function
◆ 1 U slim & compact design
| Item | Specification | |||
| Rated Power | M-9151 | M-9152 | M-9153 | M-9154 |
| 60W |
120W |
250W | 350W | |
| Speaker Output | 70V/100V | |||
| Input sensitivity | 0dbV | |||
| SNR | >80db | |||
| Frequency signal | 20HZ-20KHZ | |||
| Harmonic distortion | ≤0.3% | |||
| Protection | Limit, clip, signal, 70V | |||
| Network | RJ45(10/100M) | |||
| Network support protocol | DHCP, TCP/IP, UDP, ICMP, IGMP (Multicast), 802.1x, HTTP, HTTPS, FTP, DNS, DDNS, RFC3261, RTP, RTSP, RTCP, UPNP | |||
| Power supply | ~220V/50Hz | |||
| Dimensions (mm) | 44×430×213 (H×W×D) | |||
| Product weight (Kg) | 2.8 | |||
