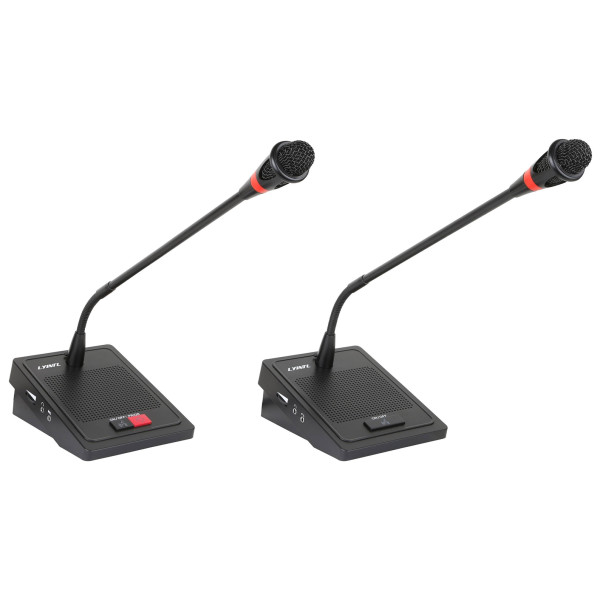

NCS-2062C/D Digital Conference System Chairman/Delegate Microphone
Product ID:
NCS-2062C/D
Short Description:
Chairman unit features priority control and exclusive management
Delegate unit supports speaking requests, PTT, and VIP settings
The NCS-2062C/D is a fully digital conference microphone unit designed for use with the LYINTL NCS-206 series conference system. Available as a Chairman unit (C) and Delegate unit (D), these tabletop units provide advanced audio control, high-quality speech reproduction, and seamless integration with the main unit and extension units.
The units allow real-time monitoring of microphone status, speaking requests, and participant information. Equipped with a uni-directional electret condenser microphone, the NCS-2062C/D delivers clear and natural voice with minimal background noise.
The Chairman unit provides additional priority control, allowing exclusive microphone management, muting of delegate microphones, and instant intervention during meetings. The units connect via Cat5e Ethernet cables and support daisy-chained configurations, enabling flexible system installation for small to large conference venues.
With adjustable microphone volume, treble/bass controls, and compatibility with software-based conference management, the NCS-2062C/D units ensure efficient, professional, and organized meeting operations.
Key Features
- High-quality electret condenser microphone for clear speech

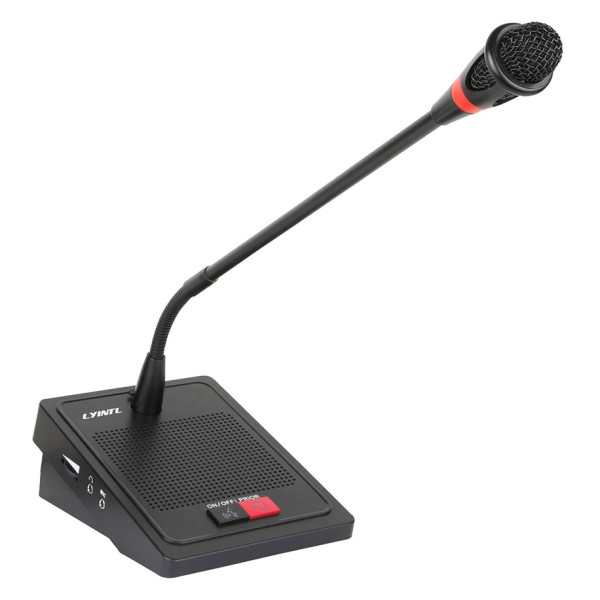

- Chairman unit (C) with priority and exclusive control functions

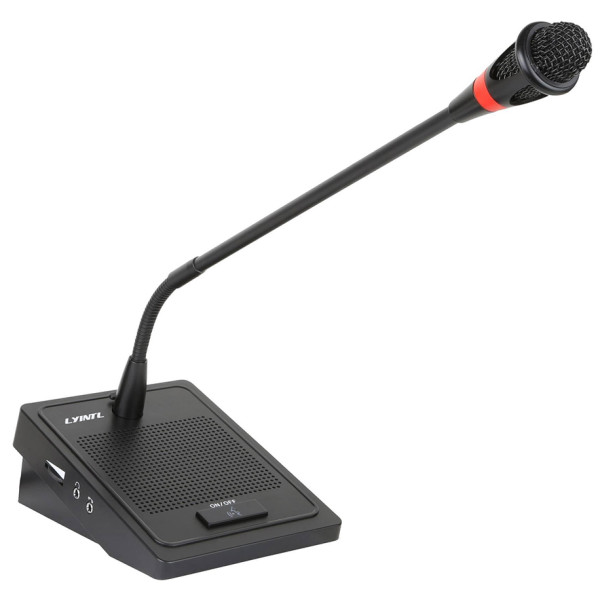

- Delegate unit (D) supports speaking requests, PTT, and VIP settings
- Uni-directional microphone for minimal background noise
- Daisy-chained connection via Cat5e Ethernet cable
- Adjustable microphone volume, treble, and bass
- Compatible with NCS-206 main and extension units for scalable setups
- Supports conference software for microphone management, voting, and recording
| Parameter | Specification |
| Model | NCS-2062C / NCS-2062D |
| Type | Digital Conference System Chairman / Delegate Microphone |
| Microphone Type | Uni-directional electret condenser |
| Frequency Response | 100Hz – 15kHz |
| Sensitivity | -44 dB ±2dB |
| Directivity | >20 dB (1 kHz) |
| Equivalent Noise | 20 dBA (SPL) |
| Max SPL | 125 dB (THD <3%) |
| Connection | Cat5e Ethernet cable with RJ45 connector |
| Power Supply | Supplied via CMU or extension unit |
| Installation | Tabletop |
| Color | Black |
| Weight | 0.85 – 1.3 kg (depending on model) |
| Compatibility | NCS-206 series main units and extension units |
| Features | Microphone priority (Chairman), PTT, VIP, volume & treble/bass adjustment, daisy-chain connection, software integration |
