Products

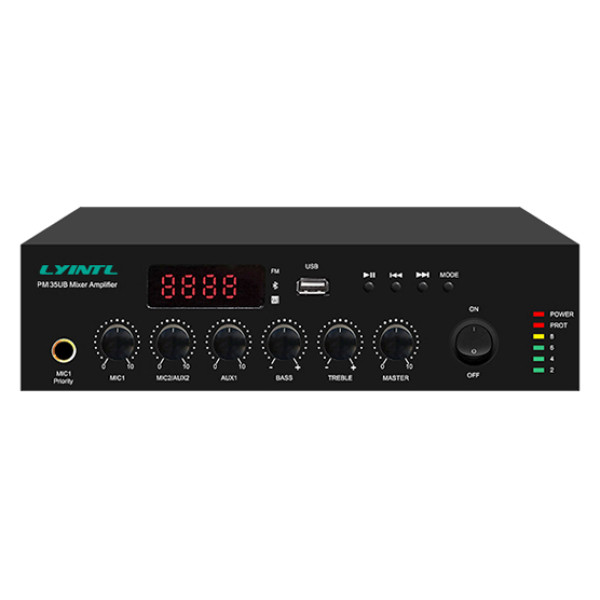

PM-35UB/PM-60UB/PM-120UB/PM-250UB Mini Digital Mixer Amplifier with USB/FM/Bluetooth
Product ID:
PM-35UB/PM-60UB/PM-120UB
Short Description:
Rated power: 35W/60W/120W/250W
Combined with MP3/FM/bluetooth
2 MIC input, 2 AUX input
1.5U designed Mini digital amplifier with USB/FM and Bluetooth;
70V/100V and 4-16Ω speaker output are available;
2 AUX input; MIC2 is XLR type in rear panel, Phantom power is available for MIC2;
1 EMC signal input for emergency purpose;
Individual volume control for each input, the amplifier also provides bass and treble control.
| Model | PM-35UB | PM-60UB | PM-120UB | PM-250UB |
| Rated output power | 35W | 60W | 120W | 250W |
| Output | 70V/100V/4-16Ω | |||
| MIC1 input sensitivity | 10mV±1mV | 10mV±1mV | ||
| MIC2 input sensitivity | 10mV±1mV | 15mV±1mV | ||
| AUX1 input sensitivity | 360mV±10% | 350mV±10% | ||
| AUX2 input sensitivity | 360mV±10% | 350mV±10% | ||
| MIC frequency response | 200Hz-10KHz (±3dB) | |||
| AUX frequency response | 80Hz-16KHz (±3dB) | 100Hz-16KHz (±3dB) | ||
| Noise | <10mV | |||
| Distortion | <1% 1KHz | |||
| Treble adjustment | 10dB (±2) | |||
| Bass adjustment | 10dB (±2) | |||
| Power supply | AC110-240V 50/60Hz | |||
| Product dimension (mm) | 198x247x66 | 250×230×66 | ||
| Packing dimension (mm) | 302x343x121 (1pc) | 363×292×106 (1pc) | ||
| Net weight (Kg) | 2.55 | 2.6 | 3.0 | 3.0 |
| Gross weight (Kg) | 3.2 | 3.25 | 3.7 | 3.7 |
