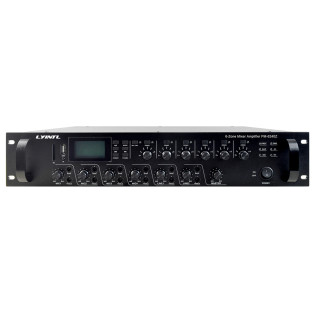

PM-6120Z/PM-6240Z/PM-6350Z/PM-6500Z/PM-6650Z 6-Zone Mixer Amplifier with USB/SD/Bluetooth/FM & Remote Paging

The PM-6120Z/PM-6240Z/PM-6350Z/PM-6500Z/PM-6650Z Series Mixer Amplifiers are high-performance multi-zone audio solutions designed for commercial and professional public address systems.

Featuring 6-zone independent control, multiple audio inputs, built-in MP3 player, emergency broadcasting, and remote paging capability, this series delivers flexible audio management for a wide range of installations such as shopping malls, schools, offices, and industrial facilities.

Key Features

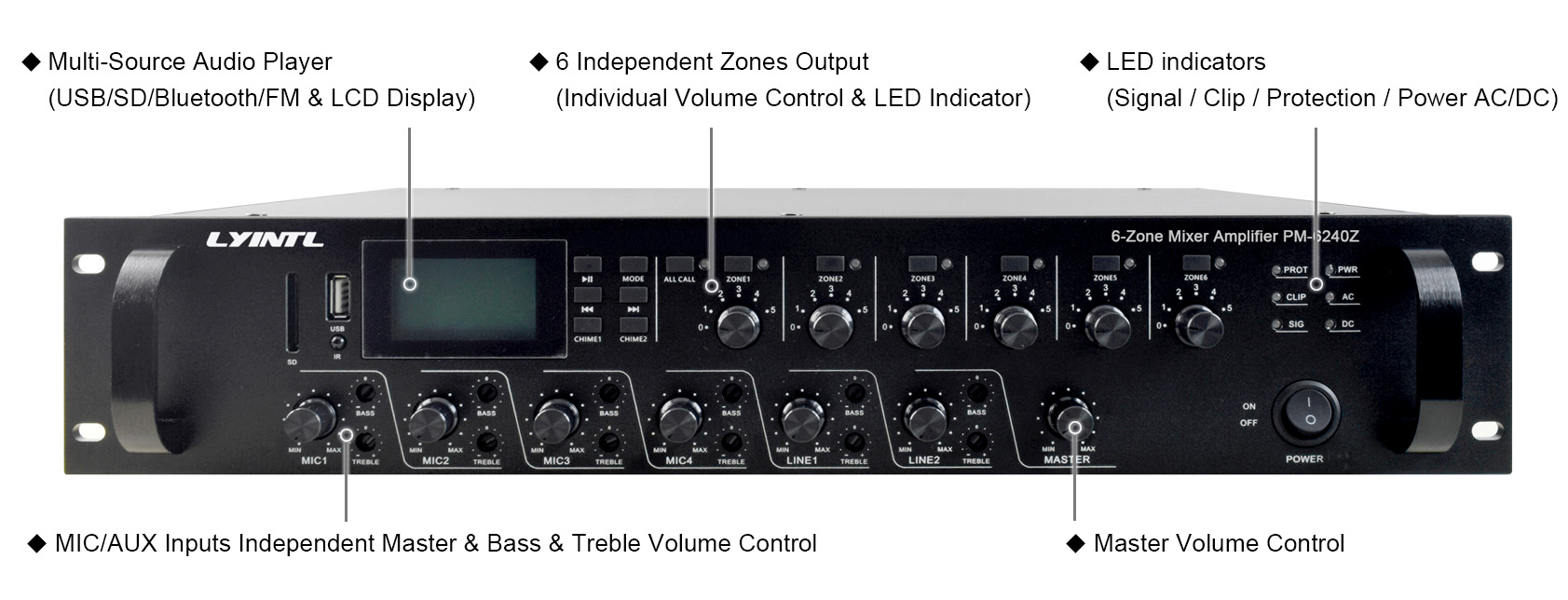

Flexible Multi-Zone Control

• 6 independent speaker zones with individual volume control
• LED indicators for each zone output status
• All-call or selective zone broadcasting

Professional Audio Input & Control

• 4 MIC inputs + 2 AUX inputs
• Independent bass & treble control
• Individual input level control + master volume
• MIC1–MIC4 with 48V phantom power (independent ON/OFF)
• MIC/LINE selectable input

Built-in Multi-Source Audio Player

• Integrated MP3 module supporting:
  • USB
  • SD card
  • Bluetooth
  • FM radio
• Comes with remote control for convenient operation

Emergency & Priority Broadcasting System

• Built-in chime generator (2-tone & 4-tone selectable)
• Integrated alarm generator
• Automatic emergency override:
  • Cuts off background music
  • Activates all zones
  • Forces maximum output level

4-Level Priority System

1. Emergency alarm generator (highest priority)
2. EMC input (external emergency signal)
3. Remote paging microphone
4. Local MIC1 input

Other inputs are mixed normally when no priority signal is active.

External Mute Control

• Rear panel MUTE trigger input
• Instantly silences all outputs for emergency or system integration

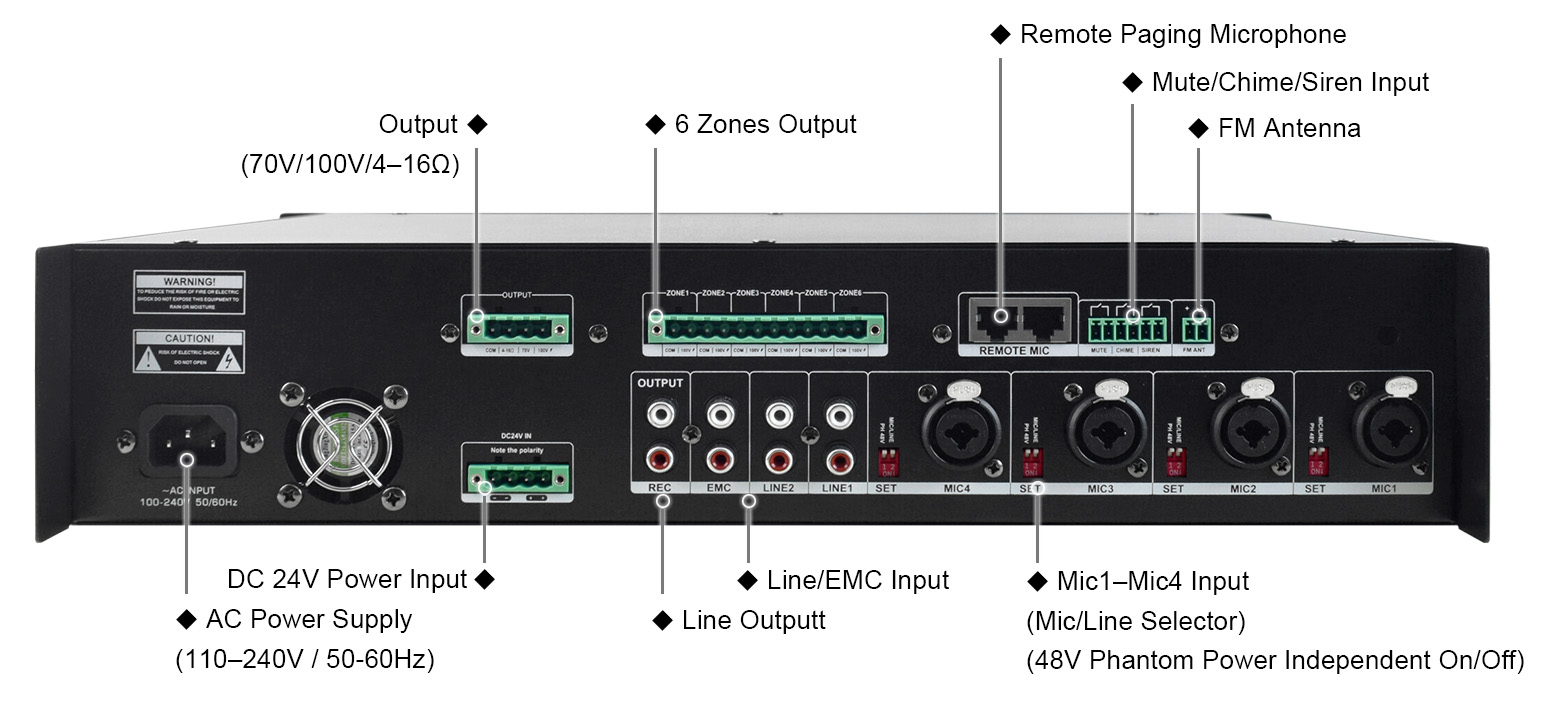

Flexible Output Options

• Constant voltage: 70V / 100V
• Low impedance: 4–16Ω
• Suitable for both long-distance and low-impedance speaker systems

Reliable Cooling & Protection

• Temperature-controlled cooling fan
• LED indicators:
  • Signal
  • Clip
  • Protection
  • Power (AC/DC)
• Designed for continuous long-time operation

Power Flexibility

• AC power supply
• Built-in 24V DC backup power input

Remote Paging Expansion

• Supports zone paging microphone (e.g., RM-60A)
• Up to 6 remote microphones can be connected
• Remote zone control and paging

Applications

• Shopping malls & supermarkets
• Schools & campuses
• Office buildings
• Hotels & restaurants
• Factories & warehouses
• Transportation hubs
