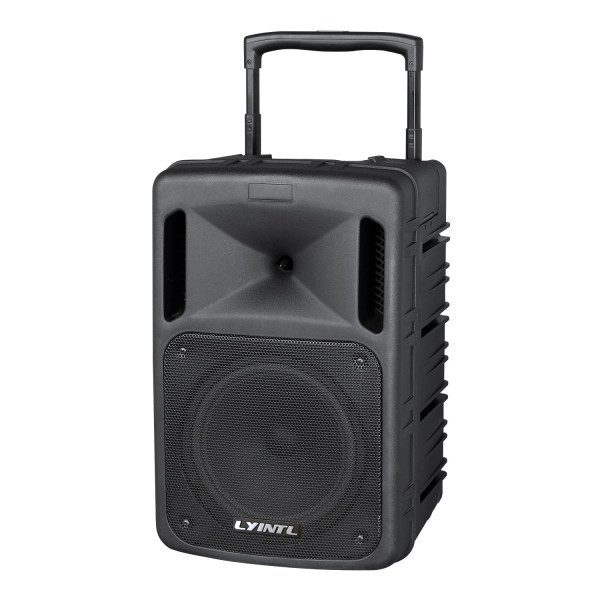

PP-710 10 Inch 300W Portable Wireless PA Trolley Speaker System With USB/SD/FM/Bluetooth/Recorder/EQ
Product ID:
PP-710
Short Description:
Output power: 300W Max
10" full-range woofer + 1" horn tweeter
USB/SD/FM/Bluetooth/Recorder/EQ functions
2 wired MIC & 1 stereo AUX input, 1 stereo AUX output
LCD display
Designed with an 10-inch full-range woofer and a 1-inch compression horn tweeter, this model delivers powerful, clear sound across a 20Hz–20kHz frequency range, with 300W peak output.
The system integrates USB/SD/FM/Bluetooth/Recorder/EQ functions with an LCD display, providing versatile audio playback options. Built-in dual VHF wireless microphone channels (UHF optional) and multiple wired inputs support flexible use in various commercial applications such as conferences, outdoor events, schools, and entertainment venues.
Key Product Features
-
Speaker Configuration:
10" full-range woofer + 1" horn tweeter -
Amplifier Type:
Class-D digital amplifier for high efficiency -
Playback Module:
USB/SD/FM/Bluetooth/Recorder with LCD display -
Microphone System:
Standard dual VHF wireless (UHF optional); supports wired microphones -
Smart Controls:
High/low tone adjustment, microphone echo delay, microphone priority
-
Power Supply:
AC 100-240V with built-in 15V/7Ah adapter; dual 12V/4.5Ah lead-acid batteries -
Durable Construction:
All-weather PP plastic cabinet with hidden storage compartment and tripod socket -
Remote Control:
Infrared remote included
Technical Specifications
-
Peak Power Output: 300W
-
Frequency Response: 20Hz–20kHz
-
Sensitivity: 95dB
-
Total Harmonic Distortion: ＜1%
-
Inputs: 2 wireless MIC inputs, 2 wired MIC inputs, 1 AUX stereo input
-
Outputs: 1 AUX stereo output
-
Cabinet Material: PP plastic
-
Dimensions: 365mm (W) × 550mm (H) × 320mm (D)
-
Net Weight: 14kg
Advantages for Partners
-
Support for OEM/ODM branding and customization
-
Flexible production for large-volume orders
-
Strict quality control and reliable delivery
-
Competitive factory prices for global distributors
| Model No. | PP-710 |
| Output power | 300W MAX |
| Input | 2 wired MIC, 2 wireless MIC input, 1 stereo AUX input |
| Output | 1 stereo AUX output |
| Line output level | 500mV |
| MIC input sensitivity | 5mV |
| Line input sensitivity | 200mV |
| Build-in features | Optional VHF wirelss MIC (handheld, lapel MIC or headset MIC) |
| MP3 player though USB & SD slot input | |
| With tripod jack at the bottom of the machine | |
| Digital FM tuner | |
| Wired & wireless MIC input | |
| Treble & bass control | |
| Digital echo control | |
| MIC with priority function | |
| Individual volume control of MP3/AUX/wired MIC | |
| With LCD display | |
| T.H.D. | <1.0% (at 10W) |
| Treble & bass adjustment gain | ±10dB |
| Sensitivity | >95dB |
| Frequency response | 20Hz - 20KHz |
| Frenquency channel | Dual channel |
| Wireless service range | MAX 35m in VHF |
| Wireless channel | 0-98 infrared auto match |
| Wireless frequency range | VHF 165~265MHz |
| Oscillating mode | ±0.005% quartz control phase locked |
| Speaker | 10" full range speaker and 1" 8Ω horn tweeter |
| Operating temperature | -25°C ~ 45°C |
| Power supply | AC100~240V / 50~60Hz, 1.0A |
| External DC 15V 7AH | |
| Build-in DC 12V 4.5AH *2 rechargeable battery | |
| Material | ABS engineering plastic body |
| Net weight | 14.0 kg |
| Gross weight | 15.5 kg |
| Product dimension | 365 x 550 x 320 mm |
| Packing dimention | - |
