Rated power: 60W
Power taps: 15W/30W/60W/8Ω/parallel 4Ω
Line input: 70V/100V/8Ω
6" or 8’’ active driver

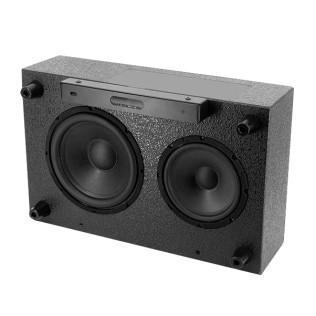

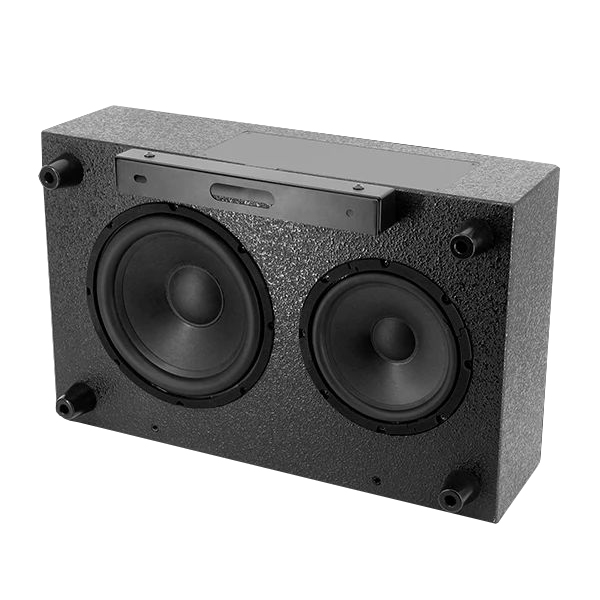

Enhance your audio experience with our fashion designed wall mount subwoofer speakers, available in 6" and 8" versions.
Designed for both home and commercial environments, these speakers deliver powerful sound and versatility for background music systems.
Key Features:
Whether you're setting up a cozy home theater or a vibrant commercial music system, our wall mount subwoofer speakers are the perfect choice for delivering exceptional sound performance.
Model | SUB-660W | SUB-860W |

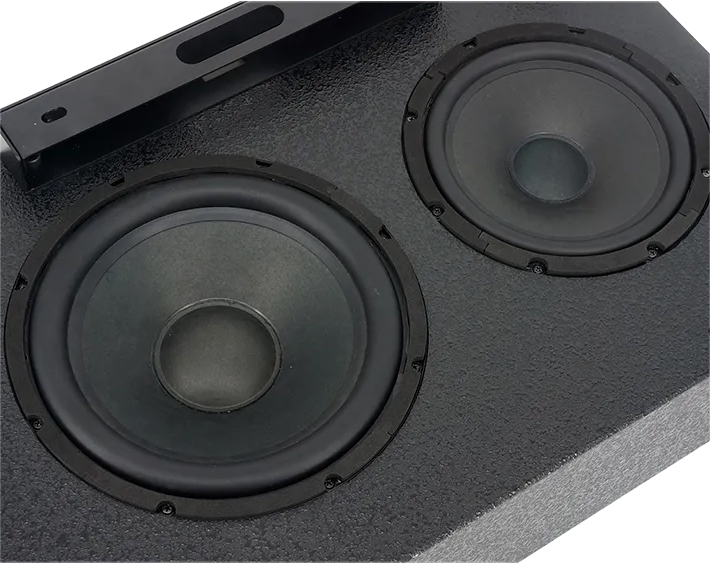

Woofer driver | 1x6" active, 1x8" passive (paper cone woofer, rubber surround) |
1x8" active, 1x10" passive (paper cone woofer, rubber surround) |
Frequency range | 35Hz-200Hz | 35Hz-200Hz |
Rated power | 60W | 60W |
Sensitivity | 87dB±3 (1M/1W) | 89dB±3 (1M/1W) |
Power taps (100V) | 15W / 30W / 60W | 15W / 30W / 60W |
Power taps (70V) | 7.5W / 15W / 30W | 7.5W / 15W / 30W |
Line input | 70V/100V/8Ω | |
Impedance | 667Ω / 333Ω / 167Ω / 8Ω / parallel 4Ω | |
Dimensions (L*W*D) | 540x350x130mm | 590x375x160mm |
Installation holes | 2*∅8mm, 280mm interval | |
Mounting method | Stent installation | |
Wire connection type | European terminal | |
Material | Body: medium density board Bracket: A3 cold steel |
|
Net weight | 7.6KG | 9.8Kg |
Gross weight | - | |
Packing dimension (LxWxD) | - |
