Product ID: X-NPMS
Short Description:
Live paging, audio task delivery
Audio monitoring and intercommunication
Manual Book Download:
- Datasheet_X-NPMS_EN1-1.pdf

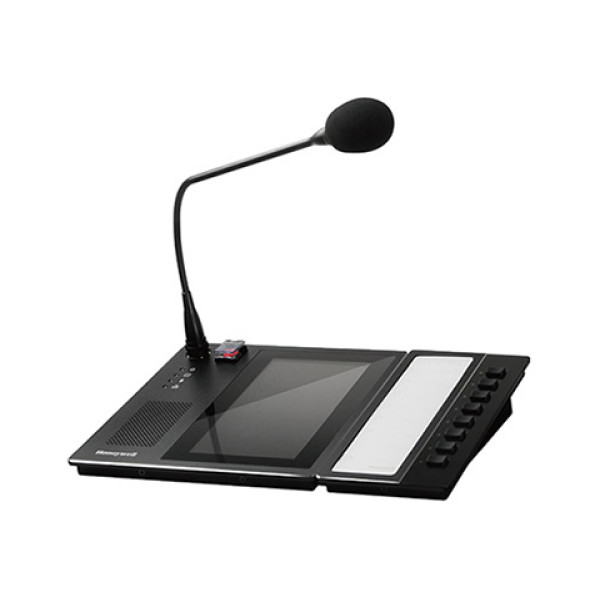

The X-NPMS connects to the X-618 system, transmitting audio and control signal through the Ethernet.
It is used for live paging, audio task delivery, audio monitoring zones, and intercommunication.


◆ Manual emergency broadcast
◆ Normal broadcast control
◆ Zoning and grouping broadcast
◆ Monitoring function
◆ Internal communication
◆ Faults monitoring
◆ Automatic record
◆ Quick and simple broadcast
◆ Recording audio in advance and
◆ broadcasting
◆ Broadcasting the audio file of U-disk
◆ Daily record


◆ Easy touch screen operation with 7’’ TFT LCD screen.
Users can operate directly on the innovative 7-inch color LCD touch screen without adding an extra key module unit. With the touch screen, users can supervise the system status, select broadcast zones, assign zone groups or other broadcast controls, including setting playlists, timing broadcastings etc. With the built-in configuration software, zones broadcast status or button functions can be configured easily.

◆ X-618 system can connect with up to 250 X-NPMS via Ethernet.
X-NPMS can be used as a node anywhere in the network. To reduce wiring cost, the devices can be connected into an existing network provided that there is sufficient band width to reduce wiring cost.


◆ AUDIO TRANSMISSION
The device comes with a detachable gooseneck microphone. Users can change different types of microphone for different real-time broadcasting requirements. The received audio signal will be digitalized to eliminate sound distortion during transmission.

The built-in speaker not only can be used for zone monitoring but also full-duplex intercom with other XNPMS in the network.

X-NPMS supports fail-safe operation. Even when the connected DCS fails, X-NPMS is still able to communicate with other X-NPMS and broadcast through other DCS in th network.
 Parameter  Value
 Power Supply Voltage  DC 24V
 Rated Power  11W
 MIC Frequency Response   50Hz~15kHz
 SNR  >85dB
 THD  <0.05%
 Microphone Input  -44dB±2dB
 Monitoring Loudspeaker  2W / 8Ω
 Line Input  0dBV(1V)
 Line Output  0dBV(1V)
 LCD Size  7 Inch
 LCD Resolution  800x480
 Sampling Rate  44.1KHz, 16Bit
 Operating Temperature  -10℃~+ 55℃
 Storage Temperature  -40℃~+ 70℃
 Relative Humidity  <95%, without condensation
 Net Weight  1.7Kg
 Gross Weight  2.5Kg
 Dimension  200x200x46.5mm
