Rated power: 150W
Power taps: 18.5W/37.5W/75W/150W/8Ω
Line input: 70V/100V/8Ω
Speaker: 8" 2-way coaxial
ABS material, protection level IP65

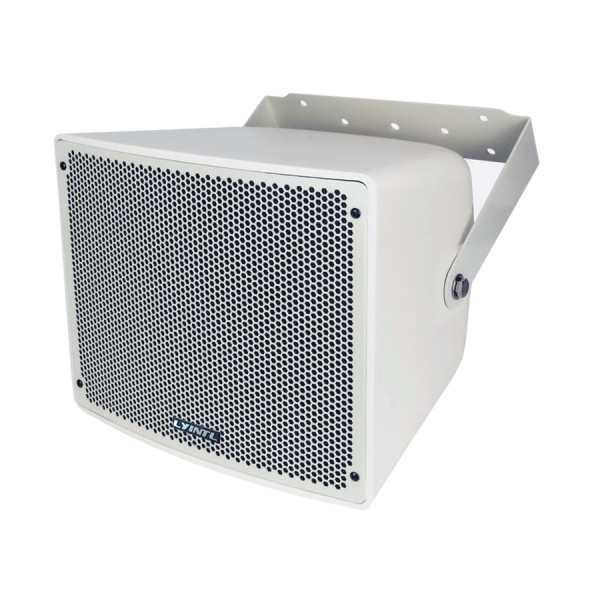

The LYINTL H-RS100T is a high-performance 2-way coaxial all-weather loudspeaker engineered for professional outdoor audio applications. Delivering up to 150W RMS (300W peak) of powerful, distortion-free sound, it supports 100V/70V line systems with an 8Ω bypass, offering maximum flexibility for any installation scenario.
Designed to thrive in challenging environments, the H-RS100T features a rugged UV-resistant ABS enclosure and a corrosion-proof aluminum grille, ensuring IP65-rated protection against rain, dust, and extreme weather conditions. It’s the ideal solution for stadiums, parks, schools, shopping centers, and theme parks where reliable, crystal-clear audio is a must.
Power Output: 150W RMS / 300W peak
Multi-Tap Transformer: 100V/70V line with 8Ω direct mode
Driver Configuration: 10" woofer + 3" titanium diaphragm compression driver
Weatherproof Design: IP65-rated with ABS housing and powder-coated aluminum grille
Frequency Response: 70Hz – 18kHz for full-range sound
Installation: Adjustable U-shaped mounting bracket included
Outdoor public address systems
Commercial complexes and campuses
Sports fields and event spaces
Swimming pools and amusement parks
Industrial facilities and large open areas
With its powerful audio performance, all-weather durability, and flexible wiring options, the LYINTL H-RS100T sets a new standard for outdoor PA speakers.
Model | H-RC100T | H-RS100T |
Rated power | 200W | 150W |
Power taps (70V) | 12.5W/25W/50W/100W/200W | 18.5W/37.5W/75W/150W |
Power taps (100V) | 25W/50W/100W/200W | 9.5W/18.5W/37.5W/75W/150W |
Max power | 400W | 300W |
Line input | 70V/100V/8Ω | 70V/100V/8Ω |
Sensitivity (1m,1W) | 103dB±3dB | 93dB±3dB |
Frequency response | 70Hz-18KHz | 80Hz-18KHz |
Woofer speaker driver | 10" | 10" |
Tweeter driver | 1.5" | 3" |
Radiation angle | 90°-100° | <120° |
Product dimension | 345x355x297 mm | 345x355x297 mm |
Frame material | ABS plastic | ABS plastic |
Grille material | Aluminum | Aluminum |
Bracket material | Stainless steel | Steel |
Protection level | IP66 (reference) | IP65 (reference) |
Product color | Black / White | Light grey |
Net weight | 13.5 kg | 10.5 kg |
Gross weight | 16.0 kg | 12.8 kg |
Packing dimension | 45x44x39 cm | 45x44x39 cm |
