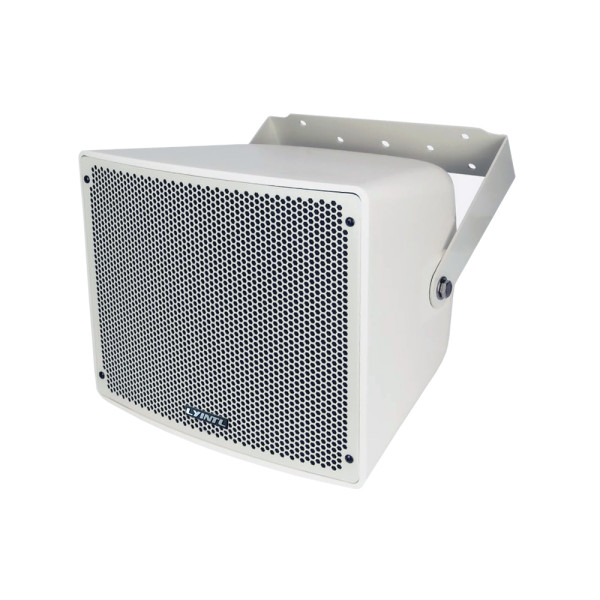

Product ID: H-RS80T
Short Description:

Rated power: 80W
Power taps: 10W/20W/40W/80W/8Ω
Line input: 70V/100V/8Ω
Speaker: 8" 2-way coaxial
ABS material, protection level IP65

The LYINTL H-RS80T is a premium-grade 2-way coaxial all-weather loudspeaker designed to deliver crystal-clear, full-range audio in demanding outdoor environments. Featuring a 80W RMS (150W peak) power rating and flexible support for 100V/70V line systems as well as 8Ω low impedance mode, it’s a reliable and versatile solution for a wide range of public address and commercial sound applications.

Built to withstand the elements, the H-RS80T features a durable ABS enclosure, a corrosion-resistant aluminum grille, and IP66-rated protection against water, dust, and UV damage. Whether you're installing in parks, sports fields, schoolyards, shopping plazas, or industrial zones, this speaker ensures long-lasting performance and high-quality sound.

Key Features:

  • Power Output: 80W RMS / 150W peak

  • Transformer Taps: 100V/70V line system with 8Ω bypass

  • Coaxial Driver Design: 8" woofer + 3" titanium diaphragm compression driver

  • Weatherproof Enclosure: IP65-rated ABS housing and aluminum grille

  • Frequency Response: 90Hz – 18kHz for detailed sound reproduction

  • Mounting Bracket Included: Adjustable U-shaped bracket for easy installation

Recommended Applications:

  • Outdoor public address systems

  • Theme parks and recreational venues

  • Sports courts and stadiums

  • School and university campuses

  • Commercial and industrial outdoor zones

With its combination of rugged durability, high output power, and superior sound clarity, the LYINTL H-RS80T is the perfect choice for professional outdoor audio installations.

 Model  H-RC80T   H-RS80T
 Rated power  150W  80W
 Power taps (70V)  9W/18W/37.5W/75W/150W   5W/10W/20W/40W/80W
 Power taps (100V)  18W/37.5W/75W/150W  10W/20W/40W/80W
 Max power  250W  150W
 Line input  70V/100V/8Ω  70V/100V/8Ω
 Sensitivity (1m,1W)  101dB±3dB  95dB±3dB
 Frequency response  80Hz-18KHz  90Hz-18KHz
 Woofer speaker driver   8"  8"
 Tweeter driver  1.5"  3"
 Radiation Angle  <110°  <120°
 Product dimension   302x312x260 mm  302x312x260 mm
 Frame material  ABS plastic  ABS plastic
 Grille material  Aluminum  Aluminum
 Bracket material Stainless steel Steel
 Protection level  IP66 (reference)  IP65 (reference)
 Product color  Black / White  Light gray
 Net weight  9.1 kg  6.5 kg
 Gross weight  12 kg  9.2 kg
 Packing dimension  39x37x33 cm  39x37x33 cm
