Products

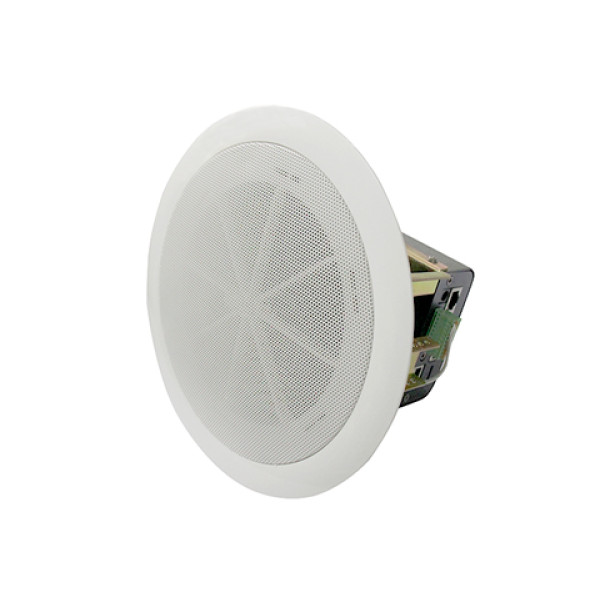

M-6311 15W IP Network Ceiling Speaker
Product ID:
M-6311
Short Description:
Built-in 2x15W digital amplifier
Built-in 4Ω 15W Hi-Fi speakers
1 AUX & 1 MIC input, 1 AUX output
Support BGM, emergency paging and siren alarm from the system center host machine;
Local MP3 program can be played when the network audio stream signal is not played;
1 AUX audio input for connection with other audio source devices (such as DVD);
1 AUX audio output for connection with other power amplifiers;
1 MIC input for achieving local paging.
◆ 100/10Mbps, TCP/IP network transmission protocol adaptive
◆ Built-in 2x15W high efficiency digital amplifier with low power-consuming
◆ Built-in 15W 4Ω Hi-Fi speakers with high output sensitivity
◆ 1 AUX audio input, 1 microphone input, 1 AUX audio output
◆ 100V local emergency input, easy to connect with the local fire alarming system
◆ Output volume and display status can be controlled by system host
| Model | M-6311 | |
| AUX Input | Input sensitivity | 1000mV |
| Frequency response | 20Hz-20kHz | |
| Distortion | ≤0.5% | |
| S/N | ≥75dB | |
| MIC Input | Output sensitivity | 10mV |
| Frequency response | 20Hz-20kHz | |
| Distortion | ≤0.5% | |
| S/N | ≥65dB | |
| AUX Output | Rated output | 1000mV |
| Frequency response | 20Hz-20kHz | |
| Distortion | ≤0.3% | |
| S/N | ≥75dB | |
| Amplifier Output | Power | 15W/4Ω |
| Frequency response | 20Hz-20kHz | |
| Distortion | ≤0.5% | |
| S/N | ≥75dB | |
| Built-in Speaker | Max SPL | ≥100dB |
| Power | 15W/4Ω | |
| Frequency response | 20Hz-20kHz | |
| Distortion | ≤0.5% | |
| S/N | ≥75dB | |
| USB/SD/Net/MP3 | Frequency respones | 20Hz-20kHz |
| Distortion | ≤0.5% | |
| S/N | ≥70dB | |
| SD card storage | 32GB | |
| U disk storage | 32GB | |
| Power Supply | 180-250V/50-60Hz | |
| Product weight (Kg) | 1.5 | |
| Dimension (LxWxH mm) | 250x175x255 | |
