M-6588 Intelligent Network Paging Microphone Station

M-6182II IP Network Public Address System Control Center

Product ID: M-6588

Short Description:

Support up to 1000 zones
Support zone and group paging
Support TCP/IP protocol transmission

Manual Book Download:
- M-6588.pdf

Inquiry

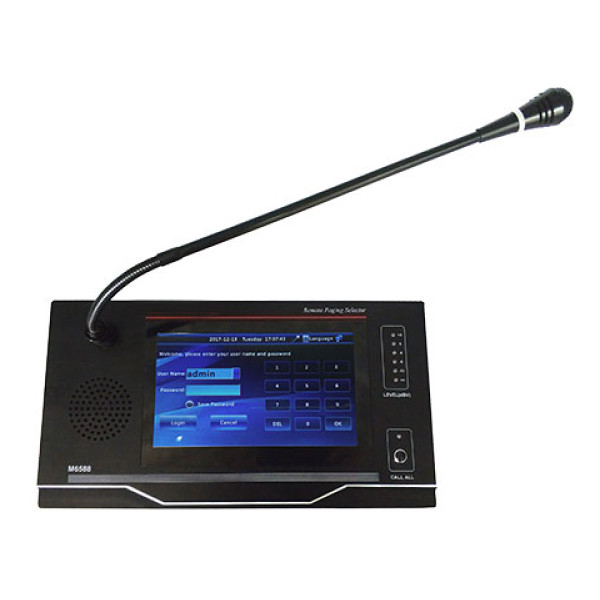

This TCP/IP based network Hi-Fi digital intelligent paging station can be used anywhere with network access. It can control upto 1,000 zones, realize digital signals transmission and intelligent control. This device provides a 7 inches LCD true color display/touch screen with graphic and user-friendly operation interface. It also provides an auxiliary input/output channels for extension of local audio source and amplification.

◆ 7 inch true color display screen, touch screen control
◆ Support up to 1000 zones
◆ Support zone paging and group paging
◆ Support TCP/IP protocol transmission, compatible with WAN / LAN
◆ Build-in 3W monitoring speaker
◆ 1 line input, 1 line output, 1 earphone monitoring interface
◆ Build-in program player, can monitor main unit autio sources
◆ Monitoring zone play status
◆ Log record
◆ Auto power saving

Model	M-6588
Rated Output Voltage	1.0±0.2V
MIC input sensitivity (1V output)	50±10mV
MIC distortion (1Kz/1V)	MIC: ≤0.2%
Effective frequency of MIC gain limit (±3dB)	40-20KHz
MIC Signal to Noise Ratio (30K lowpass)	≥75dB
MIC AGC starting threshold	600±50mV
AUX input sensitivity (1V output)	50±10mV
AUX distortion (1Kz/1V)	AUX≤0.3%
AUX Signal to Noise Ratio (30K lowpass)	≥68dB
Effective frequency of AUX gain limit (±3dB)	50-18KHz
AUX dynamic range	≥20dB
Effective frequency of monitoring (talkback voice) gain limit (±3dB)	80-16KHz
Monitoring SNR (talkback voice)	≥65dB
Working voltage	DC14V
Standby power consumption	7.3W
Power Supply	AC220V(±10%)/ 50Hz
Overall power consumption	9.5W
Package dimensions (mm)	415×280×121 (L×W×H)
Equipment dimensions (mm)	300×160×56 (L×W×H)
Gross weight (Kg)	2.5
Net Weight (Kg)	1.8
