Product ID: M-6401

Short Description:

Build-in 2x25W digital amplifier
1 AUX input, 1 MIC input, 1 AUX output
Support offline local source playing

Inquiry

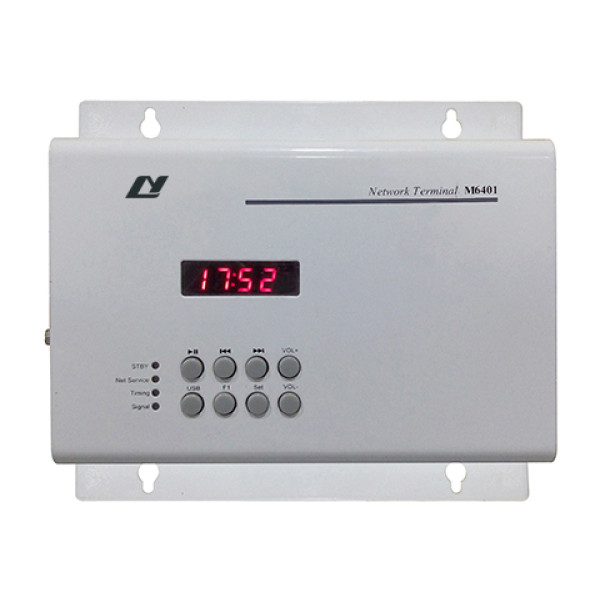

M-6401 is a terminal in Network Public Address systems. Fully digital design with hi-fi and high speech transmission index.

◆ All digital design, high fidelity audio transmission
◆ Build-in local off-line program timing play function, timing programs backup in SD card, automatically timing play
◆ Digital display, can display time or playing process
◆ Can connect to M-6402 broadcast control panel, achieve playing main unit programs freely
◆ With USB input, USB audio programs can be timing played
◆ Two network backup design, automatically LAN problem detect and network switch
◆ EMC 24V and short circuit output port
◆ Build-in 2x25W digital amplifier
◆ 1 AUX input, 1 MIC input, 1 AUX output
◆ Local MIC input with mute function
◆ 4 LED indicate machine working status
◆ 8 push buttons for daily normal operation

Model	M-6401
AUX Input / Output	Sensitivity	1000mV
	Frequency response	20Hz-20KHz
	T.H.D	≤0.1%
	S/N	≥75dB
MIC Input	Sensitivity	10mV
	Frequency response	20Hz-20KHz
	T.H.D	≤0.5%
	S/N	≥70dB
MAX output power	2x25W / 4Ω
	1x50W / 8Ω
Control mode	Manual control, remote control
Line output level	1V-1.2V
Power supply	AC 150V-250V/50-60Hz
Dimension (mm)	(L×W×H) 220×195×50
Packing dimension (mm)	(L×W×H) 330×270×125
Net weight (Kg)	1.3
