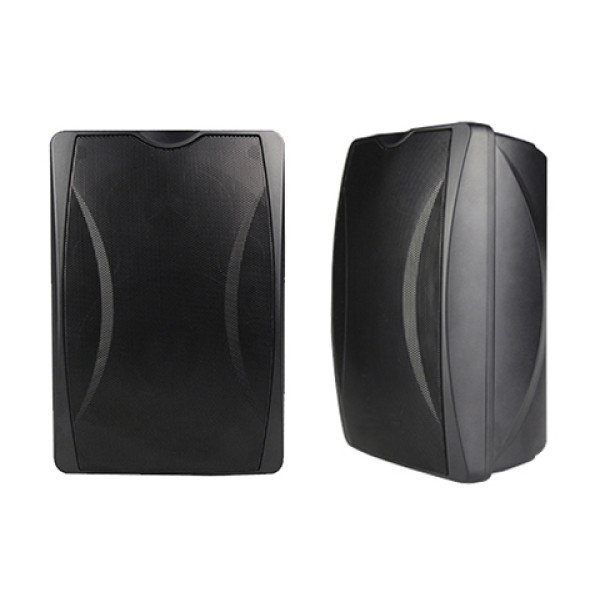

M-6463POE 10W POE IP Network Wall Mount Speaker
POE supportable wall mount speaker;
Built in Hi-Fi speaker for clear and sonorous sound;
Support any audio sources play from the system center host machine, and local MP3 audio decoding.
◆ 100/10Mbps, TCP/IP network transmission protocol adaptive
◆ High class waterproof grille, engineering plastic mold design
◆ Built-in 2x10W high efficiency digital amplifier with low power-consuming
◆ Built-in 15W 4Ω Hi-Fi speakers with high output sensitivity
Model | M-6463POE | |
AUX Input | Input impedance | >10kΩ |
Input sensitivity | 1000mV | |
Frequency response | 50Hz-20kHz | |
Distortion | ≤0.1% | |
S/N | ≥80dB | |
MIC Input | Input impedance | >600Ω |
Frequency response | 50Hz-20kHz | |
Distortion | ≤0.1% | |
S/N | ≥75dB | |
AUX Output | Output impedance | <50Ω |
Output sensitivity | 1000mV | |
Frequency response | 50Hz-20kHz | |
Distortion | ≤0.1% | |
S/N | ≥75dB | |
Amplifier Output | Power | 10W/4Ω |
Frequency response | 50Hz-20kHz | |
Distortion | ≤0.1% | |
S/N | ≥80dB | |
Built-in Speaker | Max SPL | ≥100dB |
Power | 10W/4Ω | |
Frequency response | 50Hz-20kHz | |
Distortion | ≤0.1% | |
S/N | ≥80dB | |
Interface | Dual ethernet interface | CAT-5 |
AUX input | RCA | |
AUX output | RCA | |
MIC input | 6.3 Socket | |
AUX speaker output | 3.81mm | |
Digital Audio Parameter | Decode format | Support PCM\MP3 |
Sampling frequency | 8k-48kHZ | |
Power supply | 48V POE, IEEE802.3at standard | |
Over-current, over-heat, over-voltage Protection | Yes | |
Packing dimension (LxWxH mm) | 590x275x390 | |
Product dimension (LxWxH mm) | 310x215x150 | |
Net weight (Kg) | 4.2 |
