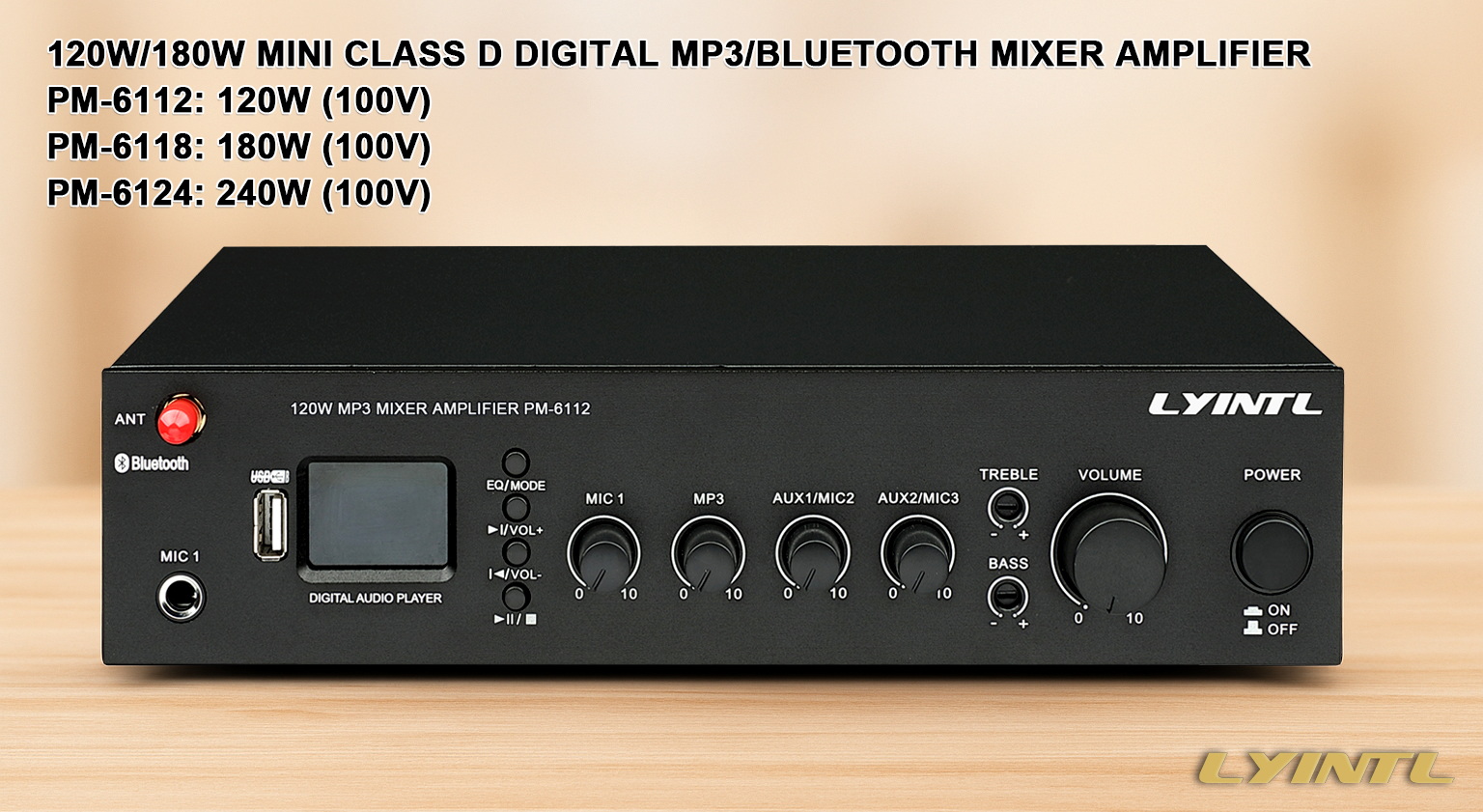

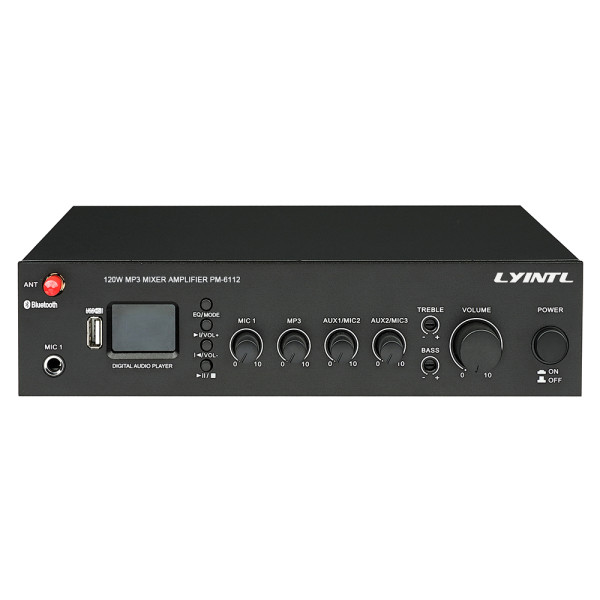

PM-6112/PM-6118/PM-6124 Mini Desktop Class D Digital Mixer Amplifier with Built-in MP3/FM/Bluetooth Player
Product ID:
PM-6112/PM-6118/PM-6124
Short Description:
Rated power: 120W / 180W / 240W @100V
Built-in USB/SD MP3 player, FM radio, Bluetooth
Class D digital design
Compact 100V Public Address Amplifier – 120W / 180W / 240W
The PM-61 Series is a line of mini 100V public address amplifiers, designed for compact yet powerful performance in commercial audio systems. With selectable power ratings of 120W (PM-6112), 180W (PM-6118), and 240W (PM-6124), these amplifiers are perfect for public broadcasting and background music systems across various installation environments.
Housed in a modern, space-saving desktop enclosure, the PM-61 Series supports multiple audio inputs including Bluetooth, MP3, FM radio, AUX, and microphone, offering excellent flexibility and sound quality for paging and music distribution.
Key Features:
-
100V Line Output – Optimized for long-distance speaker wiring in PA systems
-
Three Power Options –
• PM-6112: 120W
• PM-6118: 180W
• PM-6124: 240W -
Multi-Source Audio Support – Built-in Bluetooth, MP3 player, FM tuner, MIC, and AUX input
-
Compact & Stylish Design – Clean, modern look; easy to integrate in small racks or desktops
-
High-Efficiency Class-D Amplifier – Low heat, high reliability, and energy-saving performance
Ideal Applications:
-
Public address and background music in schools, offices, restaurants, and hotels
-
Paging systems in factories, warehouses, retail spaces
-
Compact sound systems in medical, transportation, or community centers
| Model | PM-6112 | PM-6118 | PM-6124 |
| Output Power (@1 kHz, 100V) | 120W | 180W | 240W |
| AUX Input Sensitivity | 330 mV (@1 kHz) | ||
| MIC Input Sensitivity | 10 mV (@1 kHz) | ||
| Frequency Response | ±1dB (1W, 80 Hz – 16 kHz) | ||
| THD (Total Harmonic Distortion) | < 0.5% (80 Hz – 16 kHz) | ||
| Signal-to-Noise Ratio | 98 dB (@1 kHz) | ||
| Crosstalk Separation | > 50 dB (@ rated 8Ω power, 1 kHz) | ||
| Amplifier Type | Class D | ||
| Input Types | AUX, MP3, Bluetooth, FM, MIC | ||
| Power Supply | AC90V–240V ±10%, 50Hz / 60Hz | ||
| Output Connector | 4-Pin Euroblock terminal | ||
| Net Weight | 1.6 kg | ||
| Gross Weight | 2.0 kg | ||
| Product Dimensions | 260 × 170 × 60 mm | ||
| Packaging Size | 290 × 230 × 90 mm | ||
