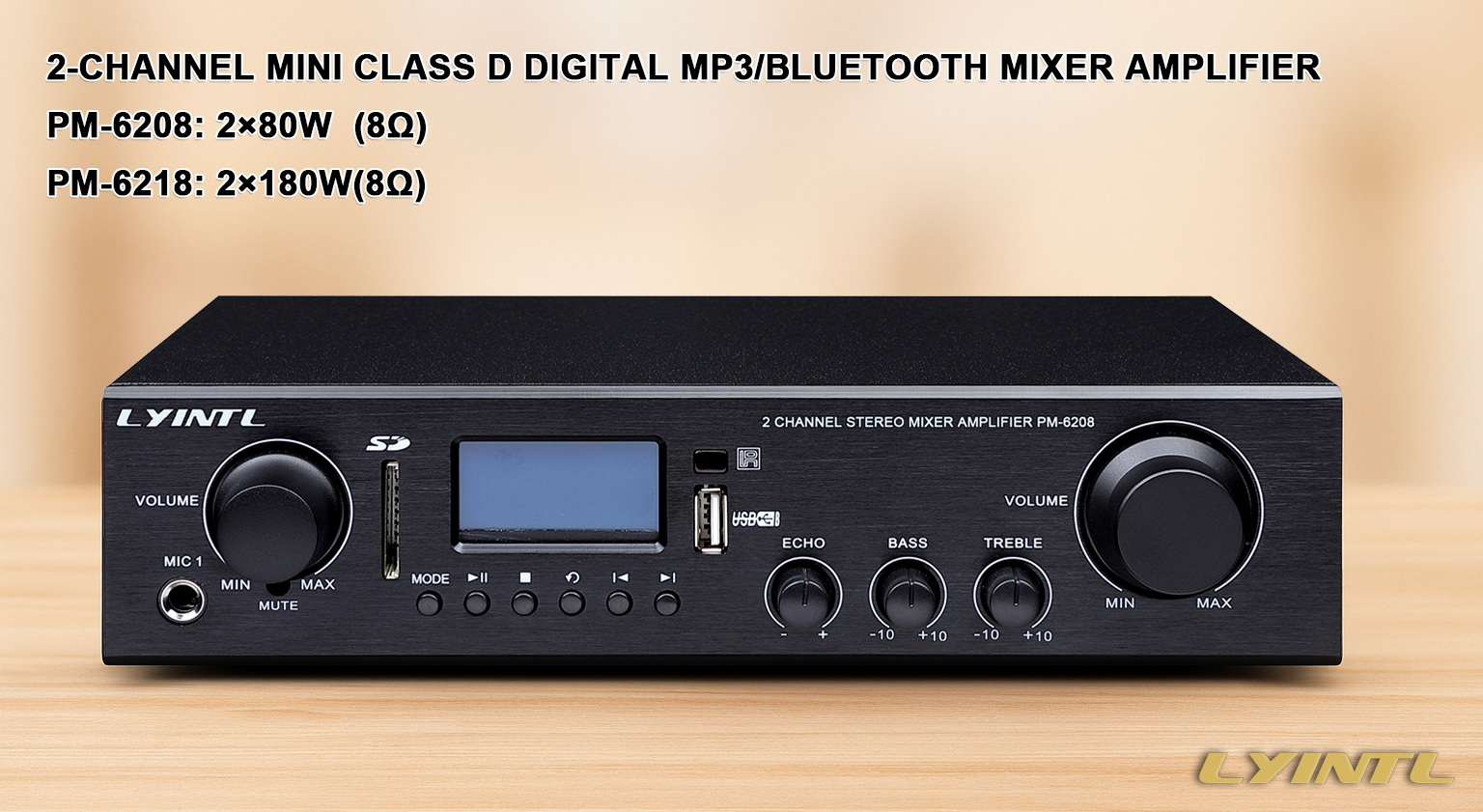

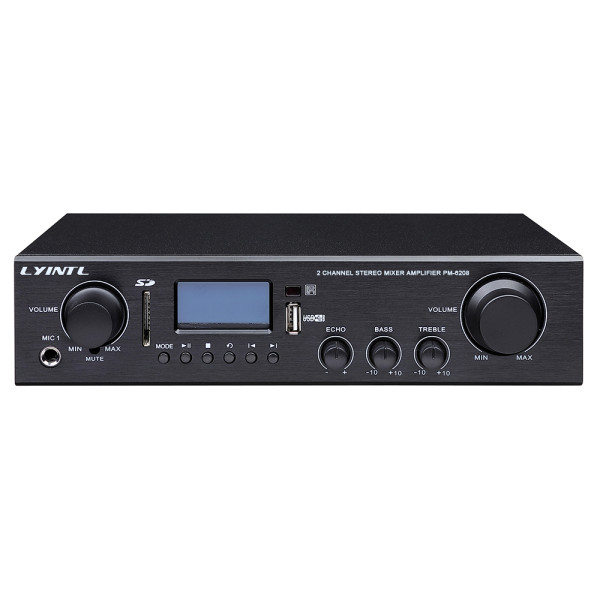

PM-6208/PM-6218 Two-Channel Mini Desktop Class D Digital Stereo Mixer Amplifier with Built-in MP3/FM/Bluetooth Player
Product ID:
PM-6208/PM-6218
Short Description:
2-Channel Stereo Output
Rated power: 2×80W(8Ω) / 2×180W(8Ω)
Built-in USB/SD MP3 player, FM radio, Bluetooth
Class D digital design
Two-Channel Mini Stereo Desktop Amplifier with MP3/FM/Bluetooth – 2×80W / 2×180W Optional
This PM-6208 (2x80W) / PM-6218 (2x180W) compact two-channel stereo amplifier is a versatile audio solution designed for both commercial and residential use. Featuring a modern desktop design and powerful Class-D performance, it is ideal for small to medium-sized sound systems where space, reliability, and multifunctionality matter.
Key Features:
-
2-Channel Stereo Output – Supports left and right channel separation for clear, immersive audio.
-
Two Power Options Available – Choose between 2×80W (8Ω) or 2×180W (8Ω) to meet your system’s requirements.
-
All-in-One Media Support – Built-in MP3 player, FM radio, Bluetooth wireless streaming, AUX, and microphone input, giving you maximum flexibility.
-
Compact & Stylish Design – Sleek desktop enclosure that fits easily into any installation space, from meeting rooms to retail environments.
-
High-Efficiency Class-D Amplification – Ensures stable performance with low heat and minimal distortion.
Ideal Applications:
-
Background music systems in retail, hospitality, offices, or cafes
-
Classroom or meeting room audio amplification
-
Small home stereo or multimedia setups
-
Public address systems requiring both music and microphone mixing
| Model | PM-6208 | PM-6218 |
| Output Power (@1 kHz) | 2 × 80W (8Ω) 2 × 120W (4Ω) |
2 × 180W (8Ω) 2 × 280W (4Ω) |
| AUX Input Sensitivity | 500 mV (@ 8Ω) | |
| MIC Input Sensitivity | 10 mV (@ 8Ω) | |
| Frequency Response | ±1dB (1W, 20 Hz – 20 kHz) | |
| THD (Total Harmonic Distortion) | < 0.5% (20 Hz – 20 kHz) | |
| Signal-to-Noise Ratio | 96 dB (@ 8Ω, 1 kHz) | |
| Crosstalk Separation | > 50 dB (@ rated 8Ω power, 1 kHz) | |
| Amplifier Type | Class D digital | |
| Input Types | AUX, MP3, Bluetooth, FM, MIC | |
| Power Supply | AC 90V–240V ±10%, 50Hz / 60Hz | |
| Output Connector | 4-Pin Euroblock terminal | |
| Net Weight | 1.8 kg | |
| Gross Weight | 2.2 kg | |
| Product Dimensions | 260 × 170 × 60 mm | |
| Packaging Size | 290 × 230 × 90 mm | |
