Product ID: HS-680T
Short Description:

Rated power: 80W
Line input: 70V/100V/8Ω
Speaker driver: 6.5" coaxial
ABS enclosure, Aluminum mesh
Outdoor IP66 waterproof

Manual Book Download:
- HS-680T.pdf

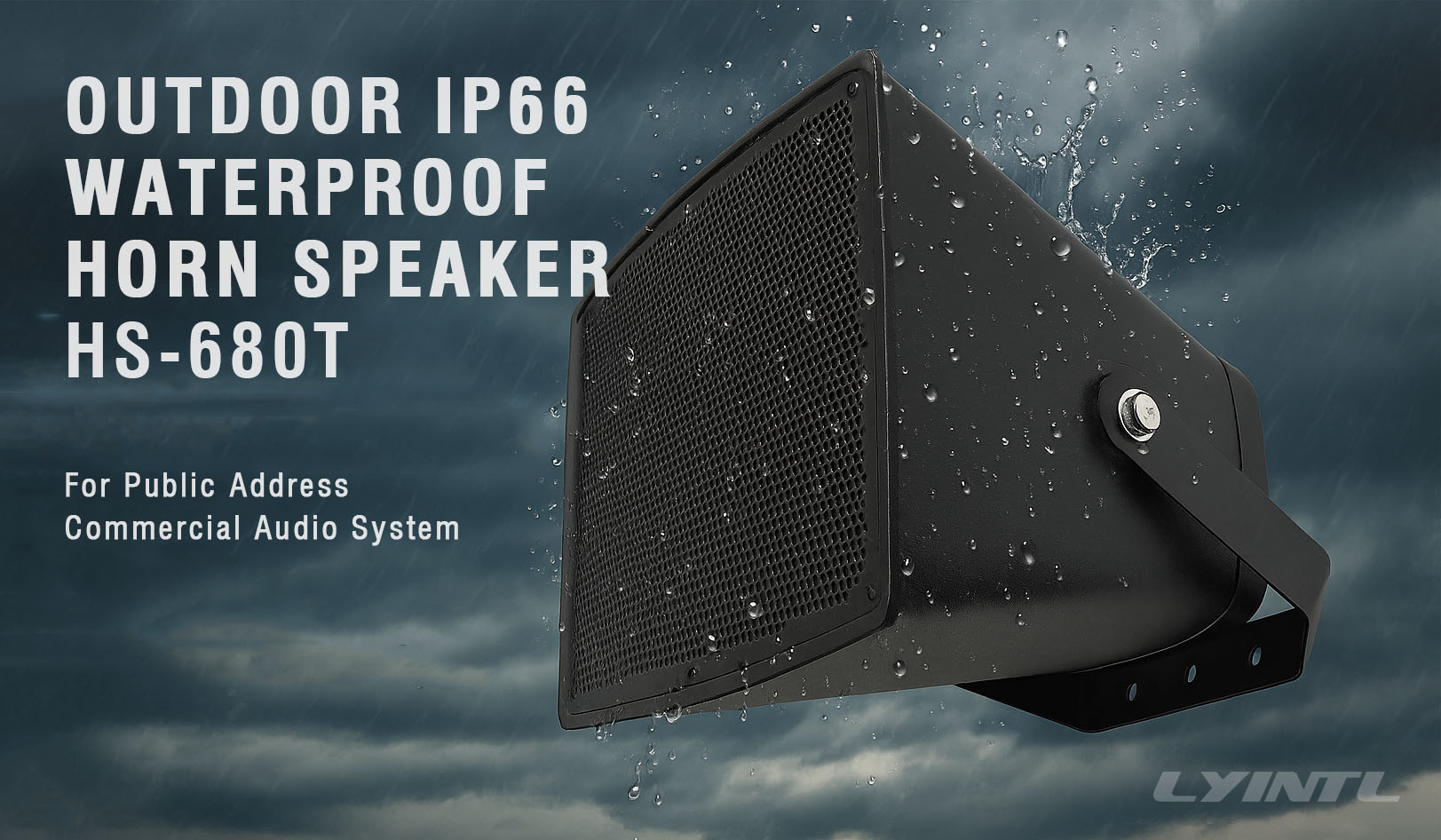

Industrial Outdoor Horn Speaker with 6.5" Coaxial Driver | IP66 Waterproof | 70V/100V/8Ω | Max 150W

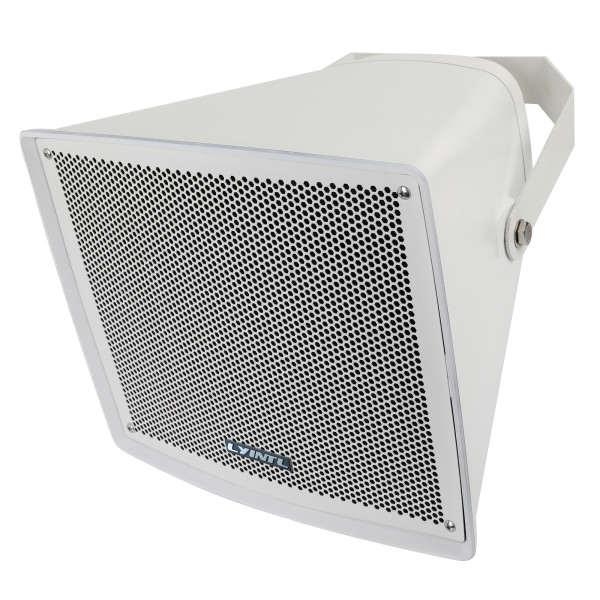

This industrial-grade outdoor horn (projector) speaker HS-680T is equipped with a 6.5" coaxial driver (6.5" woofer + 1" tweeter) and supports 70V / 100V / 8Ω input, offering multiple power tap options to suit different installation requirements. Designed for professional public address systems, this model delivers high sound pressure levels and wide frequency response for clear and powerful sound projection in outdoor environments.

The speaker features a UV-resistant ABS enclosure, aluminum front grille, and aluminum mounting bracket for enhanced durability. With an IP66 protection rating, it is suitable for long-term use in harsh conditions such as rain, dust, and high humidity.

Available in black or white, this model is ideal for applications in industrial parks, transportation terminals, campuses, sports fields, warehouses, and other outdoor venues.

OEM/ODM service is available. Custom logo, color, bracket design, or packaging can be supported upon request.

Product Features

  • High-efficiency coaxial driver for enhanced sound clarity

  • Compatible with 70V/100V distributed systems and low impedance (8Ω) systems

  • Adjustable power tap switch for flexible installation

  • IP66-rated waterproof and dustproof design

  • Robust housing with anti-corrosion components

  • Aluminum wall mount bracket included

  • Available in black or white

  • OEM/ODM customization supported

Applications

  • Public address systems

  • Outdoor paging & broadcasting

  • Industrial zones, logistics centers

  • Parking lots, schools, parks, terminals

 Model  HS-680   HS-680T
 Rated power  80W  80W
 Power taps (70V)  -   5W/10W/20W/40W/80W
 Power taps (100V)  - 10W/20W/40W/80W
 Max power 150W 150W
 Line input 70V/100V/8Ω
 Sensitivity (1m,1W) 96dB±3dB
 Frequency response 100Hz-18KHz
 Woofer speaker driver  6.5"
 Tweeter driver 1"
 Product dimension  298 x 363 x 350  mm
 Frame material  ABS plastic
 Grille material  Aluminum
 Bracket material Aluminum
 Protection level  IP66 (reference)
 Product color  Black / White
 Net weight 6.1 kg 6.7 kg
 Gross weight - -
 Packing dimension  -
