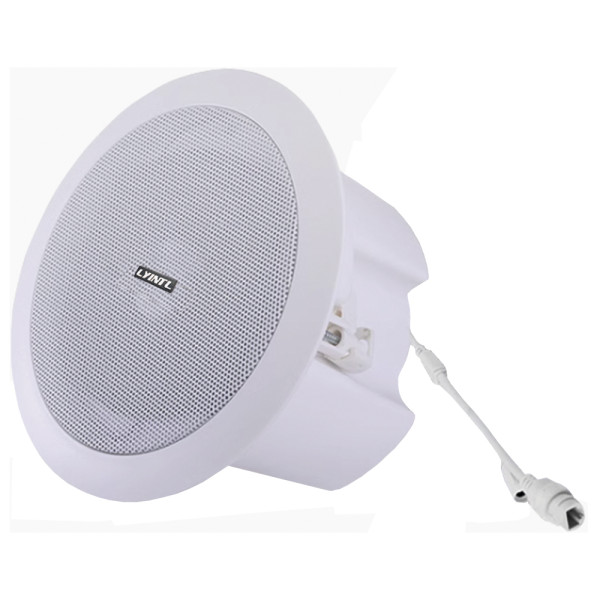

M-9433/M-9435 30W/50W IP Network In-ceiling Speaker

M-9433 / M-9435 IP Network Ceiling Speakers – Active Speakers for IP Audio Systems

The M-9433 and M-9435 speakers are high-performance IP network ceiling speakers, specifically designed for integration with the M-9200 Series IP Network Public Address System. These active speakers offer reliable playback for background music, paging, and emergency broadcast (such as fire alarms), making them ideal for indoor audio coverage in commercial, educational, and institutional environments.

Built with coaxial speaker units and integrated network audio decoding, both models receive audio streams directly via Ethernet, eliminating the need for external amplifiers or complex cabling.

Key Features:

• Built-in Network Audio Decoder: Receives IP audio streams directly, with support for TCP/IP, UDP, and SIP protocols.

• Active Speaker Design: Simplifies system wiring—no separate amplifier required.

• Versatile Power Input: Supports 220V AC or DC via adapters (12V/2A or 15V/3A).

• High Sound Quality: Wide frequency response (120–18,000Hz) and 91dB sensitivity ensure clear and consistent audio.

• Coaxial Speaker Unit: Delivers balanced sound reproduction, ideal for music and announcements.

• Plug-and-Play IP Integration: Connects via standard RJ45 port, supports 10/100M network speeds.

• Ideal for Distributed Audio Systems: Perfect for ceiling-mounted installations in offices, schools, hospitals, airports, and more.

Applications:

• Smart classrooms & campuses

• Office buildings & meeting rooms

• Shopping malls & retail stores

• Hotels, hospitals, and airports

• Any IP network audio or PA system setup

Installation & Setup:

Designed for ceiling mount, these IP ceiling speakers are easy to install and configure using a standard network cable and IP address settings. Compatible with centralized control from M-9200 system software, allowing remote zone management, real-time paging, scheduled playback, and more.
