M-9200 Intelligent IP Network PA System Control Center Host

IP Network Audio Control Host – 7U Industrial-grade IP PA System Server: M-9200

Ideal for:
Smart Campus, Industrial Parks, Government Buildings, Transportation Hubs, Urban Emergency Broadcast Systems

Product Overview

The M-9200 IP Network Public Address (PA) Control Host is an industrial-grade broadcast server equipped with integrated network audio control software. Designed to serve as the core controller of an IP-based public address system, it enables centralized management of up to 300 online terminals and supports advanced features such as network paging, scheduled playback, and multi-user control via both C/S and B/S architecture.

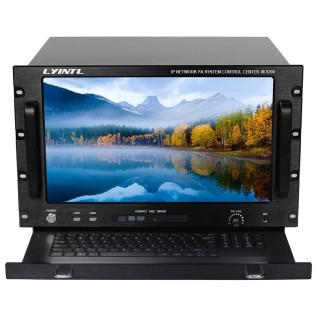

With its 7U aluminum alloy brushed panel, full steel-structured cabinet, and 17.3" high-resolution touchscreen, this system combines durability, performance, and user-friendly operation—making it ideal for 24/7 continuous broadcasting environments.

Key Features

• Built-in Broadcast Control Software: Supports terminal management, media library control, real-time/on-demand streaming, task scheduling, permission control, and more.

• 17.3" Touchscreen Interface: High-definition resistive touchscreen (1900×960) with a pull-out industrial-grade keyboard and mouse pad.

• C/S & B/S Architecture: Compatible with both server-side and browser-based access, supporting multi-level user management and sub-control permissions.

• Large-Scale Terminal Support: Up to 300 terminals online simultaneously; supports 1,000 multicast/unicast tasks.

• High Stability & Compatibility: Designed for Windows XP/7/10/11 and various server OS; runs in Windows service mode with enterprise-grade watchdog.

Software Highlights

• Full media library management including music, presets, and internet radio.

• Unlimited terminal grouping, scheduled tasks, real-time paging, and remote control.

• Mobile App WiFi control and custom hotkey paging zones.

• Supports text-to-speech (TTS) for voice broadcasting; paging mic auto-mute; background music mixing.

• Comprehensive log system: operation, alarm, control, intercom, and playback logs.

• Third-party integration via HTTP API: Seamless link to safe-city systems, CCTV platforms, rural broadcast projects, etc.

• Fully supports fire alarm linkage, digital/analog mixed alerting, and prioritized emergency overrides.

• Unattended operation: Auto-terminal discovery, auto-reconnect, offline task execution, and power-failure data protection.

Reliability and Protection

• Anti-magnetic, anti-dust, shock-resistant steel housing

• Silent cooling fans, wide-temperature tolerance for demanding environments

• Packaged in high-strength flight case for shipping safety

Applications

This IP-based PA control host is widely used in:

• Schools and campuses

• Government and smart city infrastructure

• Transportation systems (airports, railways)

• Emergency broadcast networks

• Industrial zones and manufacturing plants
