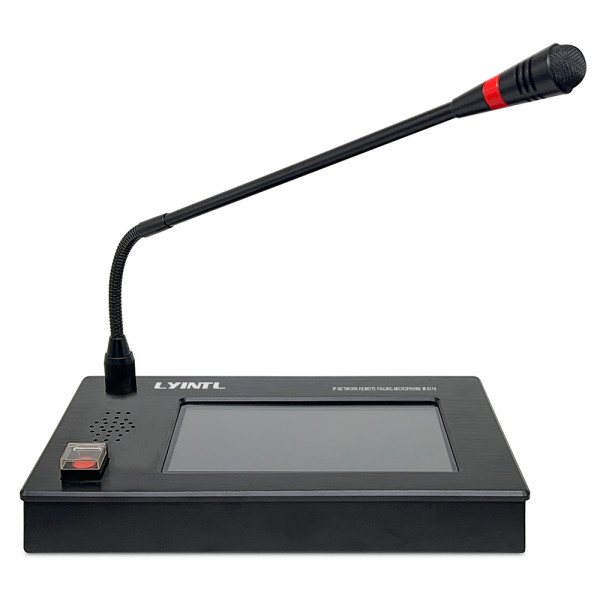

M-9210S IP Network PA System Remote Paging Station Integrated with Center Control Software

Product ID: M-9210S

Short Description:

Full functions of M-9210 IP network paging microphone
Integrated with system center control software
Support upto 20 network terminals

Inquiry

M-9210S All-in-One IP Paging Microphone with Integrated System Control Software

Remote Paging + Central System Management in One Compact Device

The M-9210S is an advanced all-in-one IP network paging terminal that combines the full functionality of the M-9210 remote paging microphone with the powerful M-9200 IP PA system control software—integrated directly into the same sleek desktop hardware.

Designed for smart campuses, industrial parks, public facilities, and enterprise audio broadcasting systems, the M-9210S offers centralized control, remote paging, intercom, real-time task scheduling, terminal management, and audio streaming—all from a single interface.

Visually identical to the M-9210, the M-9210S adds embedded server-level control functions, eliminating the need for an external broadcast system host.

Key Features & Highlights

✅ Integrated IP Network Broadcast Software (M-9200 Core)

No external control host needed—built-in software enables centralized scheduling, audio stream management, terminal control, and user permission assignment.

✅ 7” Full-Color Touchscreen Display

Real-time access to terminal status, intercom, USB media control, program scheduling, and scan diagnostics.

✅ Dual-Mode Communication

Supports hands-free and private talk modes via built-in speaker/microphone or external gooseneck mic and headset.

✅ Remote Paging + Intercom

Page any IP terminal or zone across the LAN/WAN; two-way intercom with other M-9210 or M-9210S devices.

✅ Terminal Scan & Monitoring

Send test tones to terminals and monitor ambient sound remotely.

✅ Multilingual UI & One-Touch Login

Support for English, Chinese, and Korean; simple one-touch login and IP configuration.

✅ USB Playback & Offline Scheduling

Broadcast media from USB to selected terminals and support offline timed tasks and emergency triggers.

Applications

IP Public Address Systems
Smart Campus Intercom & Broadcast
Government & Municipal Voice Networks
Emergency Paging & Alarm Broadcast
Factory Paging & Audio Management
Transportation Hubs & Rail Systems

Item	Specification
Display	7” full-color capacitive touch LCD
Audio Input	1 × 3.5mm Mic input, 1 × 3.5mm Line input
Audio Output	1 × 3.5mm Line output (to external amplifier)
Control I/O	1 × Short-circuit input, 2 × Short-circuit outputs
USB Interface	USB media playback & control
Network	1 × RJ45 LAN port (10/100Mbps), DHCP/static IP
Power Supply	DC 12V adapter (included)
Built-in Software	Embedded M-9200 Broadcast Control Platform
Intercom Support	Yes, with call record and callback functions
Installation	Desktop/tabletop, same chassis as M-9210
