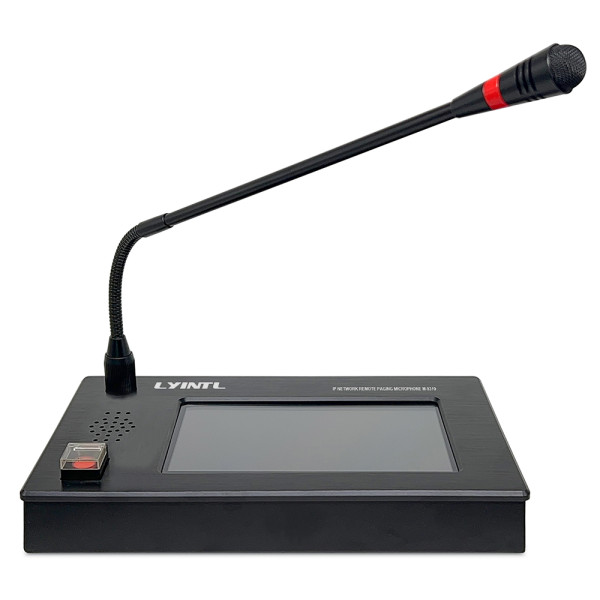

M-9210 IP Network PA System Remote Paging Station

M-9210 IP Network Paging Microphone
—— Touchscreen Intercom Terminal for M-9200 Series PA System

The M-9210 is a professional-grade IP network paging microphone designed for use with the M-9200 Series IP-based public address and audio broadcasting systems. This device offers full-featured network paging, two-way intercom, and optional WiFi and 4G remote paging capability—ideal for enterprise, industrial, school, and smart city applications.

Engineered for centralized and decentralized voice broadcasting, the M-9310 enables operators to page any terminal across the LAN or WAN. With its 7-inch full-color touchscreen, it provides intuitive control over zone paging, terminal status, real-time tasks, and audio playback.

Key Features

• ✅ Real-time IP Network Paging
  Page any terminal within the M-9200 network public address system. Perfect for zoned announcements, emergency calls, or scheduled messages.

• ✅ Two-Way Intercom Function
  Built-in intercom capability allows voice communication between multiple M-9310 units—ideal for control rooms and distributed paging stations.

• ✅ 7-Inch Capacitive Touchscreen Display
  View and manage IP settings, device status, intercom activity, real-time tasks, USB playback, and terminal scan from a single interface.

• ✅ Hands-Free and Private Paging Modes
  Supports hands-free operation with built-in speaker and gooseneck mic, or private conversations via 3.5mm headset/mic input.

• ✅ Terminal Scan & Test Function
  Verify individual terminal audio output by sending test tones directly—ideal for system diagnostics and installation checks.

• ✅ Multilingual Interface (EN/CN/KR)
  User-friendly interface supports three languages and features one-touch login, device information access, and system configuration.

• ✅ USB Playback & Offline Scheduling
  Supports USB media playback to selected terminals, as well as offline timed tasks and short-circuit triggered alarms.

• ✅ Flexible Networking & IP Compatibility
  Supports static IP and DHCP, with full compatibility across different network segments and routers.

Technical Specifications

• Display: 7" full-color touch LCD

• Audio I/O:

  • 1 × 3.5mm Mic Input

  • 1 × 3.5mm Line Input

  • 1 × 3.5mm Line Output

• Control I/O:

  • 1 × Short-circuit Input

  • 2 × Short-circuit Outputs

• Network: 1 × RJ45 LAN port (10/100Mbps)

• Audio Output: Local line-out for external amplifier

• Power Supply: DC 12V adapter (included)

• Installation: Desktop/tabletop

Optional Upgrade

• WiFi or 4G Remote Paging (Optional)
  Supports paging over LAN WiFi or 4G cellular networks—ideal for remote broadcast stations, emergency mobile units, or off-site paging.

Applications

• IP Network Audio Systems

• Smart Campus & School PA Systems

• Industrial Parks & Factories

• Commercial Complexes & Airports

• Emergency Voice Broadcast & Paging

• Control Room Intercom Communication
