M-9220 60W IP Network PA System Indoor Audio Playback Terminal

60W IP Network Audio Playback Terminal: M-9220
—— Compact Wall-Mount PA Decoder for Indoor Speaker Systems

The M-9200 60W IP Network Audio Playback Terminal M-9220 is a compact, wall-mount network audio decoder designed for use with IP-based public address (PA) systems. Ideal for small to medium-sized indoor environments, this device receives digital audio streams from the M-9200 IP Network PA Control Center and converts them into powerful, high-quality analog output for connected 4–8Ω speakers.

With its minimalistic form factor, white finish, and silent operation, it's perfect for discreet installations in classrooms, offices, retail stores, hotels, and hospitality venues.

✅ Key Features – Network PA Audio Decoder Playback Terminal

• High-Fidelity Audio Playback:

Converts IP audio signals into 60W speaker output for real-time playback over indoor speaker systems.

• Compact Size & Sleek Design:

Ultra-thin, clean white casing fits seamlessly into most interior designs.

• Versatile Speaker Output:

Support 1 × 60W output at 4–8 Ohms or 2 × 30W / 8Ω speakers in parallel (4Ω load configuration)

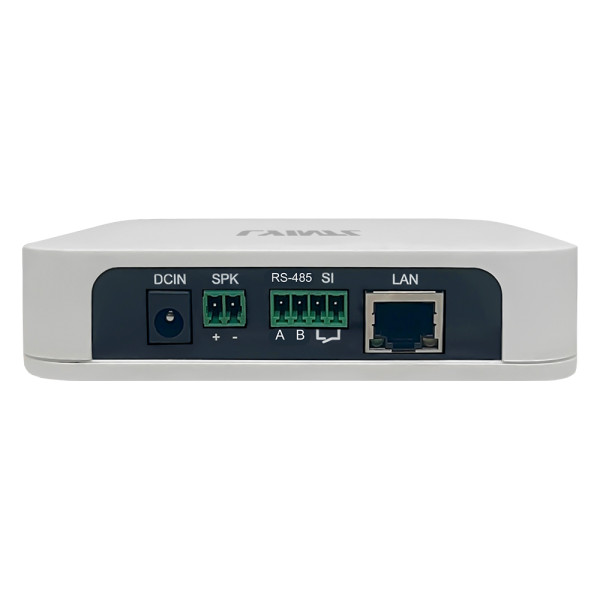

• Plug-and-Play Network Integration:

1 × RJ45 LAN port for seamless IP audio streaming and control

Supports 10/100Mbps Ethernet connections

• RS485 Expansion Port:

Enables future add-ons or integration with control panels and smart triggers.

• Flexible Power Supply:

Operates on DC 12V–24V, making it easy to integrate with standard PA system power sources.

• Part of the M-9200 IP Network PA System:

Fully compatible with the M-9200 control host and other M-9200 series components.
