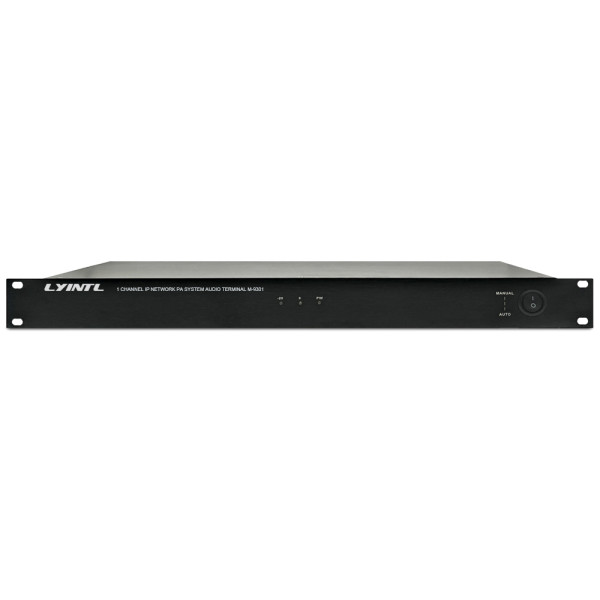

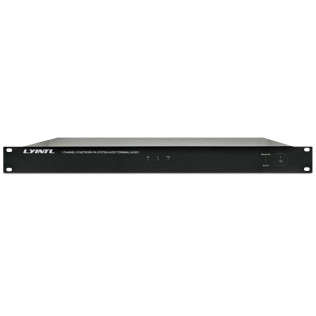

M-9301 1-Channel IP Network PA System Audio Input Adaper

The M-9301 IP Audio Acquisition Terminal is a high-performance front-end device designed for M-9200 IP-based Public Address (PA) Systems. It captures analog audio signals from various traditional sources such as CD players, DVD players, MP3 players, or other line-level devices, encodes them into high-quality 48kHz digital audio streams, and delivers them in real-time to designated IP network broadcast terminals.

This compact and rugged device is ideal for applications requiring real-time audio streaming, centralized music broadcast, or scheduled remote content acquisition, helping to bridge traditional AV sources with modern IP network-based audio distribution systems.

Key Features

• Professional 1U rack-mount design with a full black metal chassis and sleek brushed aluminum front panel — durable and industrial-grade.

• One line-level AV audio input, with independent volume control and signal indicator LED for input status monitoring.

• Converts analog audio into high-fidelity 48kHz digital stream, transmits over IP for playback on network broadcast terminals.

• Supports remote management and multi-source input via centralized server software; enables scheduled or on-demand streaming.

• Hardware-based encoding ensures low latency and high sampling accuracy with excellent stability.

• Supports major IP protocols such as TCP/IP, UDP, IGMP (multicast) — highly compatible with existing network infrastructures.

• Low power consumption (<10W) and passive cooling design for 24/7 continuous operation.

• Compact and reliable — ideal for digital campuses, transportation hubs, factories, smart buildings, and multi-zone PA applications.
